Technical specifications
| Code | Watt | CRI | Voltage | Size | Beam | CCT | Notes |
|---|---|---|---|---|---|---|---|

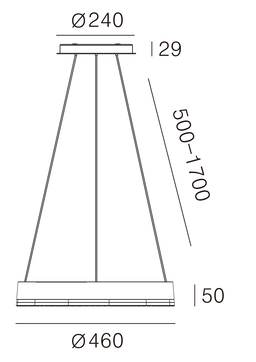

| PE-Y6-R460 | 60 W | 97 CRI | 36 V | Ø460 × 50 mm | 45° | 2700, 4000 K | 700 mA |
| PE-Y6-R650 | 80 W | 97 CRI | 36 V | Ø650 × 50 mm | 45° | 2700, 4000 K | 950 mA |
| PE-Y6-R850 | 100 W | 97 CRI | 36 V | Ø850 × 50 mm | 45° | 2700, 4000 K | 1200 mA |
- LED source
- Citizen
- Colour temperature
- 2700, 4000 K
- Beam angles
- 45°
- Mounting
- Suspended
- IP rating
- IP20
Photometry
PE-Y6-R850. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: estimated from catalogue data, not measured.
- Power
- 100 W
- Luminous flux
- 7,500 lm
- Efficacy
- 75 lm/W
- Peak intensity
- 11,134 cd
- Field angle (10%)
- 82°
- At 3 m
- 1,237 lx, Ø2.49 m
