Technical specifications
| Code | Watt | CRI | Flux | Size | Beam | CCT |
|---|---|---|---|---|---|---|

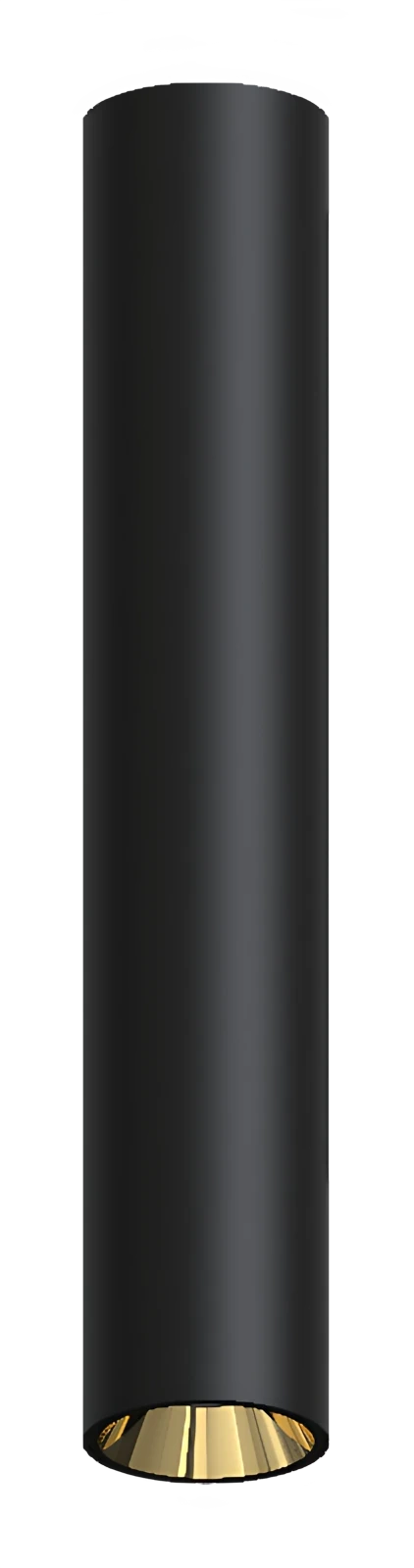

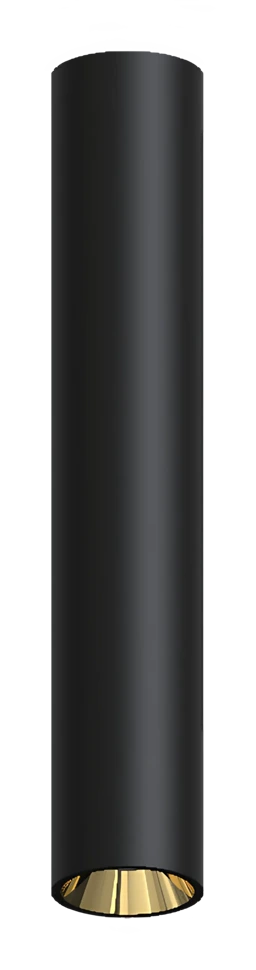

| P3-4094 | 14 W | 97 CRI | 1000–1200 lm | Ø53 × 300 mm | 18° 24° 36° | 3000, 4000 K |
- LED source
- Citizen
- Colour temperature
- 3000, 4000 K
- Beam angles
- 18°, 24°, 36°
- Control
- Triac, Casambi, DALI, 0–10 V
- Mounting
- Suspended
- IP rating
- IP20
- Certifications
- CE, RoHS, EMC, LVD
Photometry
P3-4094. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: calculated from catalogue data, not measured.
- Power
- 14 W
- Luminous flux
- 310 lm
- Efficacy
- 22 lm/W
- Peak intensity
- 2,792 cd
- Field angle (10%)
- 32.8°
- At 3 m
- 310 lx, Ø0.95 m
- Power
- 14 W
- Luminous flux
- 508 lm
- Efficacy
- 36 lm/W
- Peak intensity
- 2,580 cd
- Field angle (10%)
- 43.7°
- At 3 m
- 287 lx, Ø1.28 m
- Power
- 14 W
- Luminous flux
- 1,083 lm
- Efficacy
- 77 lm/W
- Peak intensity
- 2,480 cd
- Field angle (10%)
- 65.6°
- At 3 m
- 276 lx, Ø1.95 m
