Technical specifications
| Code | Watt | CRI | Flux | Size | Beam | CCT |
|---|---|---|---|---|---|---|

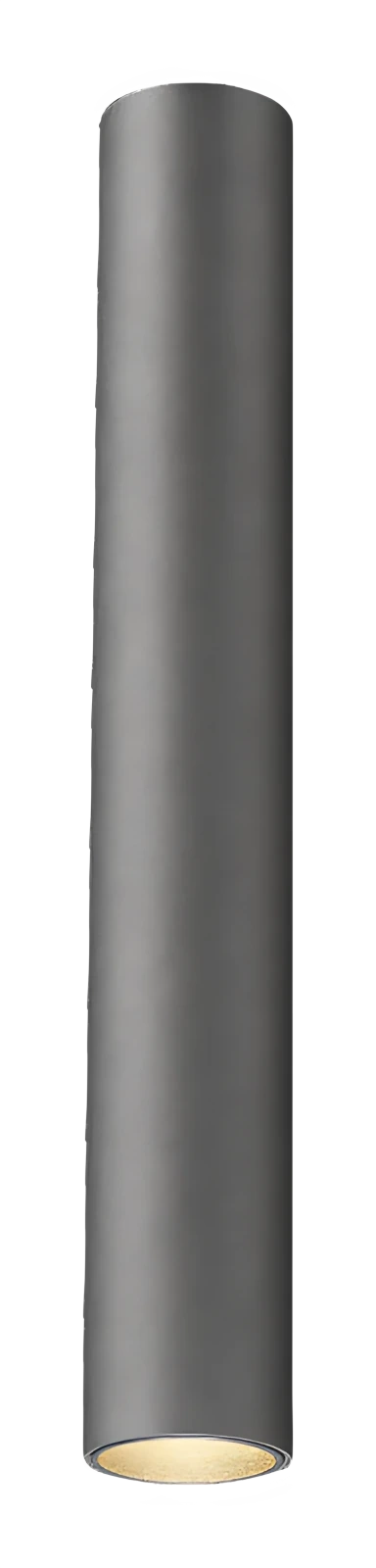

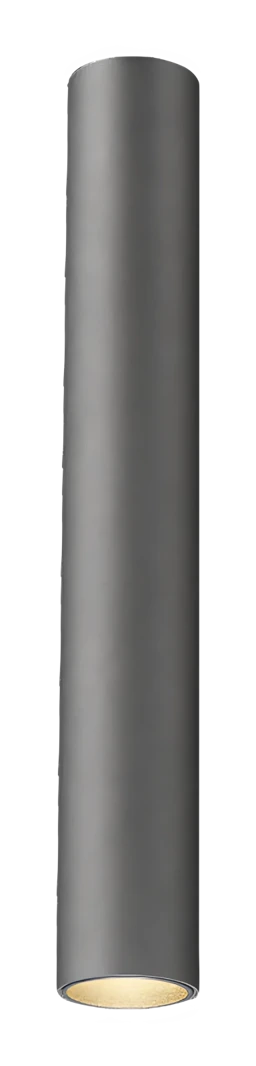

| P3-4010 | 10 W | 97 CRI | 800–900 lm | Ø45 × 300 mm | 15° 24° 36° 45° 60° | 3000, 4000 K |
- LED source
- Citizen
- Colour temperature
- 3000, 4000 K
- Beam angles
- 15°, 24°, 36°, 45°, 60°
- Control
- Triac, Casambi, DALI, 0–10 V
- Mounting
- Suspended
- IP rating
- IP20
- Certifications
- CE, RoHS, EMC, LVD
Photometry
P3-4010. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: calculated from catalogue data, not measured.
- Power
- 10 W
- Luminous flux
- 704 lm
- Efficacy
- 70 lm/W
- Peak intensity
- 3,580 cd
- Field angle (10%)
- 43.7°
- At 3 m
- 398 lx, Ø1.28 m
- Power
- 10 W
- Luminous flux
- 1,012 lm
- Efficacy
- 101 lm/W
- Peak intensity
- 2,316 cd
- Field angle (10%)
- 65.6°
- At 3 m
- 257 lx, Ø1.95 m
- Power
- 10 W
- Luminous flux
- 800 lm
- Efficacy
- 80 lm/W
- Peak intensity
- 10,344 cd
- Field angle (10%)
- 27.3°
- At 3 m
- 1,149 lx, Ø0.79 m
- Power
- 10 W
- Luminous flux
- 800 lm
- Efficacy
- 80 lm/W
- Peak intensity
- 1,188 cd
- Field angle (10%)
- 82°
- At 3 m
- 132 lx, Ø2.49 m
