Technical specifications
| Code | Watt | CRI | Voltage | Flux | Size | CCT |
|---|---|---|---|---|---|---|

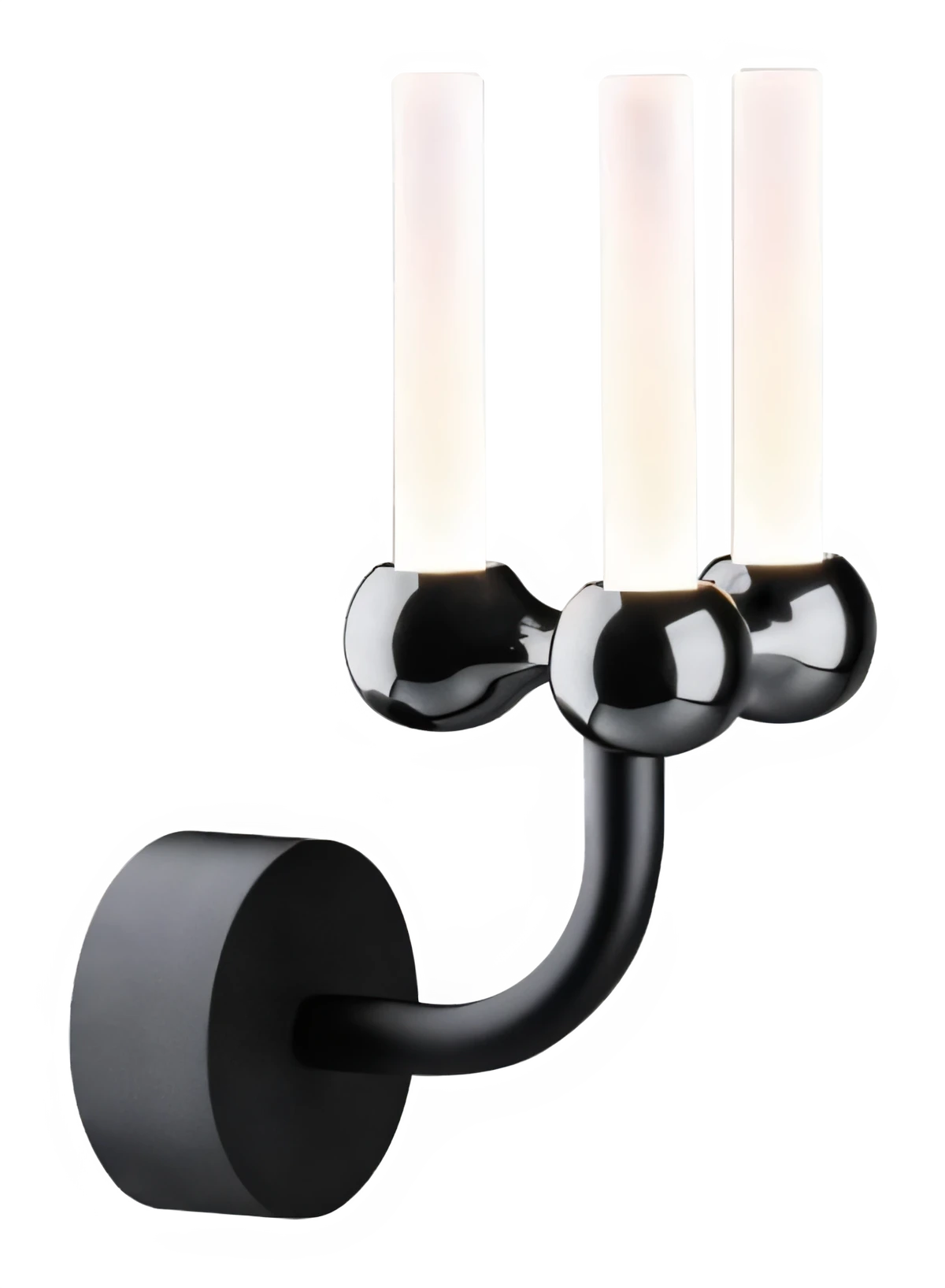

| WL0114 | 11 W | 97 CRI | 230 V AC | 630 lm | Ø80 × 34 mm back plate; 108 × 135 mm | 2700, 3000, 4000 K |
- LED source
- Citizen
- Colour temperature
- 2700, 3000, 4000 K
- Mounting
- Surface, Wall
- IP rating
- IP20
- Certifications
- CE
Photometry
WL0114. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: calculated from catalogue data, not measured.
- Power
- 11 W
- Luminous flux
- 630 lm
- Efficacy
- 57 lm/W
- Peak intensity
- 201 cd
- Field angle (10%)
- 168.5°
- At 3 m
- 22 lx, Ø10.39 m
