ENIT

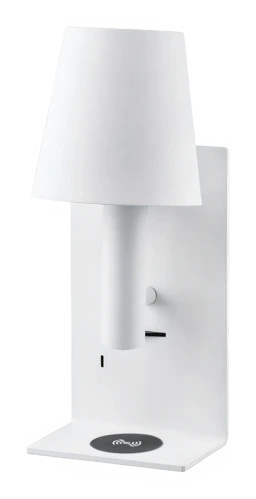

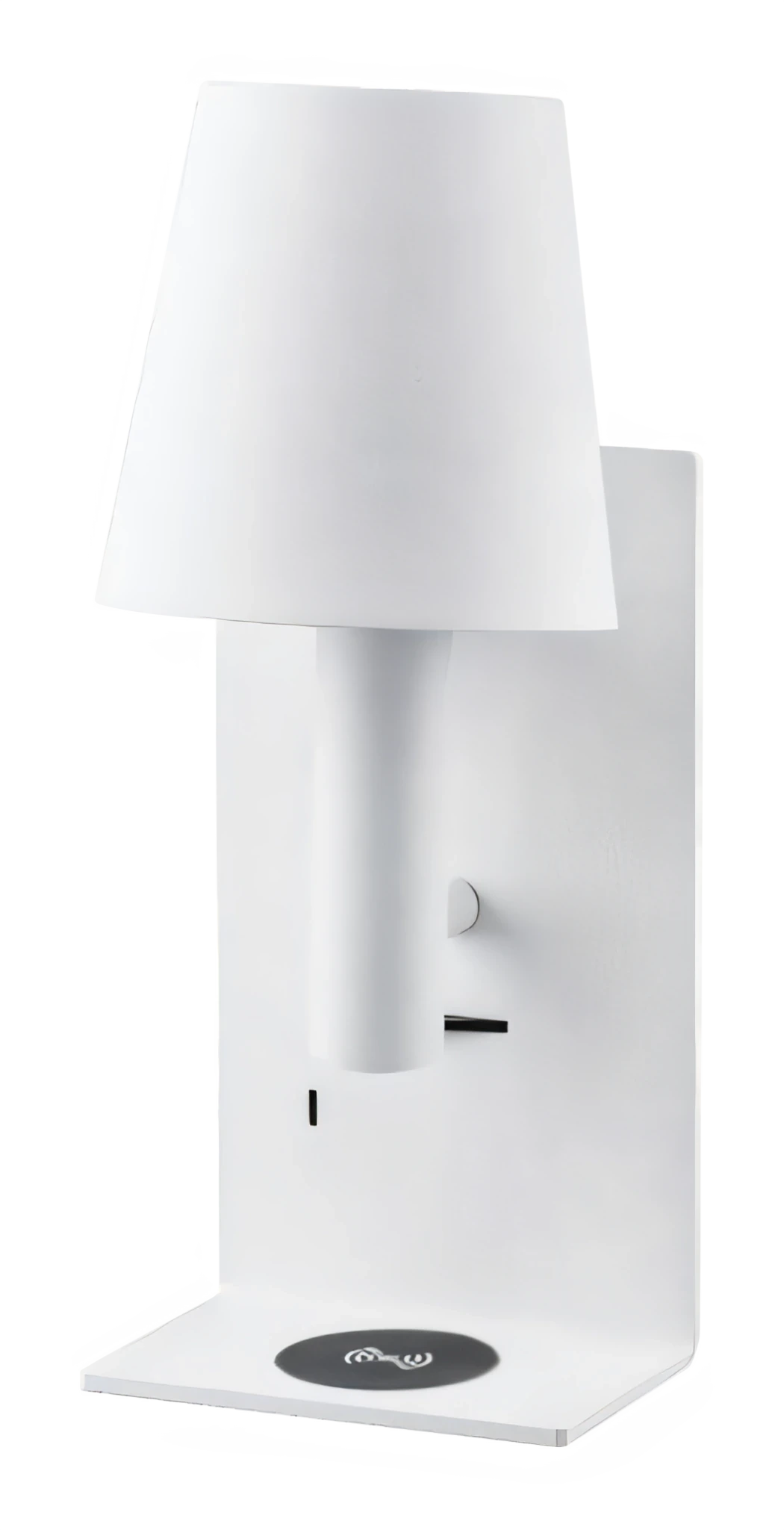

Oval Indoor WL0061

Technical specifications

CodeWattCRIVoltageFluxSizeBeamCCT
WL00613 W97 CRI220 V AC180 lm302, 210, Ø115, 115, 120, 112, 82, 110, Ø26 mm20° 40° 60°2700, 3000, 4000 K
LED source
Citizen
Colour temperature
2700, 3000, 4000 K
Beam angles
20°, 40°, 60°
Mounting
Surface, Wall
IP rating
IP20
Certifications
CE

Photometry

WL0061. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: calculated from catalogue data, not measured.

0°30°60°30°60° 36487296 cd/klm C0–C180 C90–C270
20°
Power
3 W
Luminous flux
180 lm
Efficacy
60 lm/W
Peak intensity
1,313 cd
Field angle (10%)
36.5°
At 3 m
146 lx, Ø1.06 m
0°30°60°30°60° 9321864 cd/klm C0–C180 C90–C270
40°
Power
3 W
Luminous flux
180 lm
Efficacy
60 lm/W
Peak intensity
336 cd
Field angle (10%)
72.9°
At 3 m
37 lx, Ø2.18 m
0°30°60°30°60° 430860 cd/klm C0–C180 C90–C270
60°
Power
3 W
Luminous flux
180 lm
Efficacy
60 lm/W
Peak intensity
155 cd
Field angle (10%)
109.4°
At 3 m
17 lx, Ø3.46 m
