Technical specifications
| Code | Watt | CRI | Voltage | Flux | Size | Beam | CCT |
|---|---|---|---|---|---|---|---|

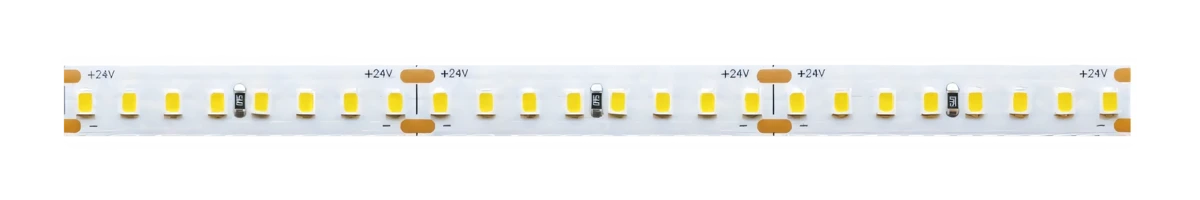

| OL-KNNF24160T09-0A38 | 14.4 W | 97 CRI | 24 V | 2016 lm/m | PCB width 10 mm, thickness 1.1 mm (side view) | 117.6° | 2700, 3000, 4000, 6500 K |
| OL-INNF24160T09-0A38 | 14.4 W | 97 CRI | 24 V | 2044 lm/m | PCB width 10 mm, thickness 1.1 mm (side view) | 117.6° | 2700, 3000, 4000, 6500 K |
| OL-DNNF24160T09-0A38 | 14.4 W | 97 CRI | 24 V | 2088 lm/m | PCB width 10 mm, thickness 1.1 mm (side view) | 117.6° | 2700, 3000, 4000, 6500 K |
| OL-WNNF24160T09-0A38 | 14.4 W | 97 CRI | 24 V | 2088 lm/m | PCB width 10 mm, thickness 1.1 mm (side view) | 117.6° | 2700, 3000, 4000, 6500 K |
- LED source
- Citizen
- Colour temperature
- 2700, 3000, 4000, 6500 K
- Beam angles
- 117.6°
- Mounting
- Recessed
- IP rating
- IP20
- Certifications
- CE, RoHS, ErP, UL
- Note
- Power per metre
Photometry
OL-KNNF24160T09-0A38. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: calculated from catalogue data, not measured.
- Power
- 14.4 W
- Luminous flux
- 1,697 lm
- Efficacy
- 118 lm/W
- Peak intensity
- 516 cd
- At 3 m
- 57 lx, Ø9.91 m
