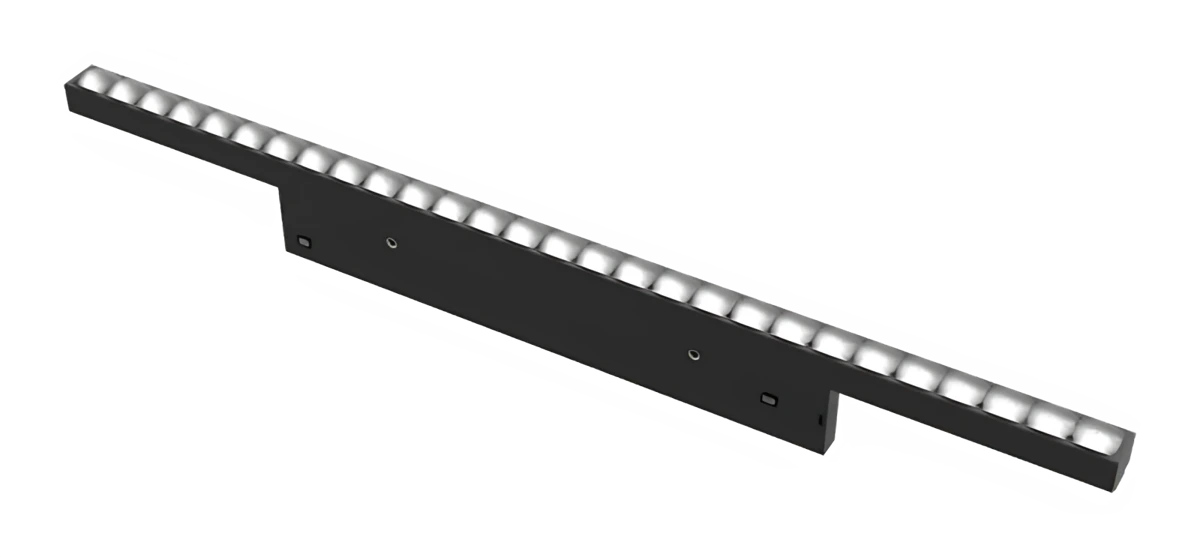

Moon Line M-11L-280

Technical specifications

CodeWattCRIVoltageSizeCCTNotes
M-11L-280—97 CRI48 V DC—3000, 4000 K—
M-11L-28012 W97 CRI48 V DCL283 x W11 x H31 mm3000, 4000 KLED 36 V, 250 mA
LED source
Citizen
Colour temperature
3000, 4000 K
Control
On/Off, Triac
Mounting
Magnetic track
IP rating
IP20

Photometry

M-11L-280. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: estimated from catalogue data, not measured.

0°30°60°30°60° 159318 cd/klm C0–C180 C90–C270
Wide distribution
Power
12 W
Luminous flux
720 lm
Efficacy
60 lm/W
Peak intensity
229 cd
Field angle (10%)
168.5°
At 3 m
25 lx, Ø10.39 m
