Moon Floor M-P06+C120B-8W

Technical specifications

CodeWattCRIVoltageSizeBeamCCTNotes

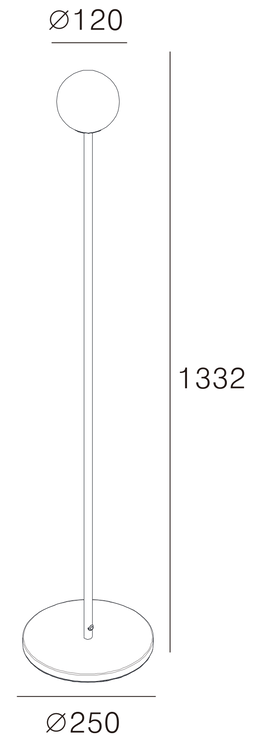

M-P06+C120B-8WSphere Ø1208 W97 CRI48 V DCSphere Ø120, H1332, base Ø250 mm120°2700, 3000, 4000 KLED 36 V, 200 mA
LED source
Citizen
Colour temperature
2700, 3000, 4000 K
Beam angles
120°
Control
On/Off, Triac
Mounting
Floor
IP rating
IP20

Photometry

M-P06+C120B-8W. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: estimated from catalogue data, not measured.

0°30°60°30°60° 149298 cd/klm C0–C180 C90–C270
120°
Power
8 W
Luminous flux
480 lm
Efficacy
60 lm/W
Peak intensity
143 cd
At 3 m
16 lx, Ø10.39 m
