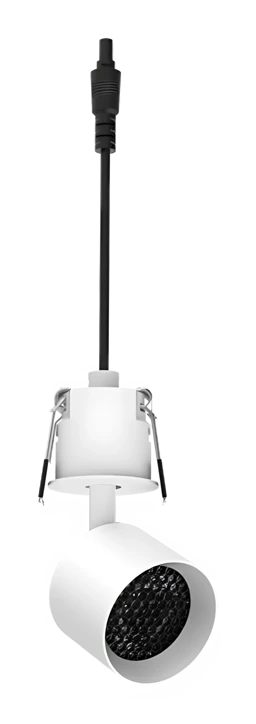

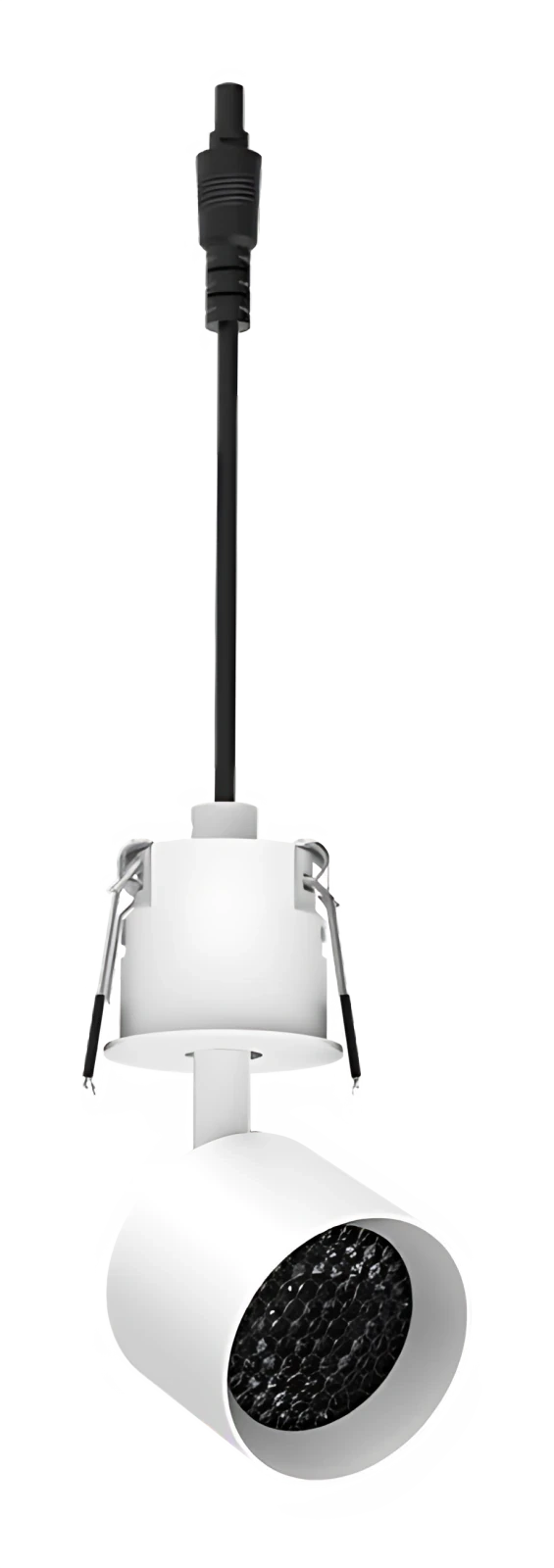

Moon B M-P01+B60

Technical specifications

CodeWattCRIVoltageSizeBeamCCTCut-outNotes
M-P01+B608 W97 CRI48 V DCHead Ø60 × 45 mm15° 24° 36° 60°2700, 3000, 4000 KØ38 mmLED 36 V, 200 mA
LED source
Citizen
Colour temperature
2700, 3000, 4000 K
Beam angles
15°, 24°, 36°, 60°
Control
On/Off, Triac
Mounting
Recessed, Surface
IP rating
IP20

Photometry

M-P01+B60. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: estimated from catalogue data, not measured.

0°30°60°30°60° 646512930 cd/klm C0–C180 C90–C270
15°
Power
8 W
Luminous flux
600 lm
Efficacy
75 lm/W
Peak intensity
7,758 cd
Field angle (10%)
27.3°
At 3 m
862 lx, Ø0.79 m
0°30°60°30°60° 25425083 cd/klm C0–C180 C90–C270
24°
Power
8 W
Luminous flux
600 lm
Efficacy
75 lm/W
Peak intensity
3,050 cd
Field angle (10%)
43.7°
At 3 m
339 lx, Ø1.28 m
0°30°60°30°60° 11452289 cd/klm C0–C180 C90–C270
36°
Power
8 W
Luminous flux
600 lm
Efficacy
75 lm/W
Peak intensity
1,373 cd
Field angle (10%)
65.6°
At 3 m
153 lx, Ø1.95 m
0°30°60°30°60° 430860 cd/klm C0–C180 C90–C270
60°
Power
8 W
Luminous flux
600 lm
Efficacy
75 lm/W
Peak intensity
516 cd
Field angle (10%)
109.4°
At 3 m
57 lx, Ø3.46 m
