Technical specifications
| Code | Watt | CRI | Voltage | Size | CCT | Notes |
|---|---|---|---|---|---|---|

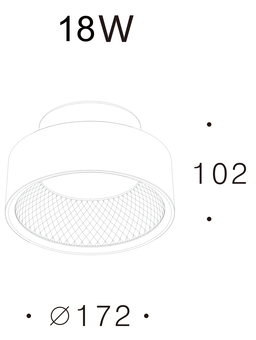

| SU-M3-1801 | 18 W | 97 CRI | 36 V | Ø172 × 102 mm | 2700, 3000, 4000, 5000 K | 450 mA |
| SU-M3-2501 | 25 W | 97 CRI | 36 V | Ø228 × 118 mm | 2700, 3000, 4000, 5000 K | 600 mA |
- LED source
- Citizen
- Colour temperature
- 2700, 3000, 4000, 5000 K
- Control
- On/Off, Triac
- Mounting
- Surface
- IP rating
- IP54
Photometry
SU-M3-2501. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: estimated from catalogue data, not measured.
- Power
- 25 W
- Luminous flux
- 1,500 lm
- Efficacy
- 60 lm/W
- Peak intensity
- 477 cd
- Field angle (10%)
- 168.5°
- At 3 m
- 53 lx, Ø10.39 m
