Technical specifications
| Code | Watt | CRI | Voltage | Size | Beam | CCT |
|---|---|---|---|---|---|---|

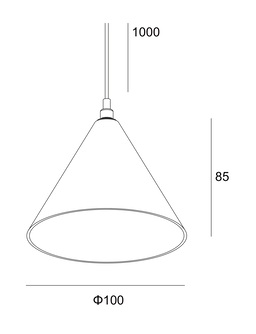

| M15-CL-A | 7 W | 97 CRI | 48 V DC | Ø100 × 85 × 1000 mm | 24° 36° 50° | 3000, 4000, 5000 K |
- LED source
- Citizen
- Colour temperature
- 3000, 4000, 5000 K
- Beam angles
- 24°, 36°, 50°
- Control
- Casambi, DALI, Tuya, 0–10 V
- Mounting
- Magnetic track, Suspended
Photometry
M15-CL-A. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: estimated from catalogue data, not measured.
- Power
- 7 W
- Luminous flux
- 525 lm
- Efficacy
- 75 lm/W
- Peak intensity
- 2,669 cd
- Field angle (10%)
- 43.7°
- At 3 m
- 297 lx, Ø1.28 m
- Power
- 7 W
- Luminous flux
- 525 lm
- Efficacy
- 75 lm/W
- Peak intensity
- 1,202 cd
- Field angle (10%)
- 65.6°
- At 3 m
- 134 lx, Ø1.95 m
- Power
- 7 W
- Luminous flux
- 525 lm
- Efficacy
- 75 lm/W
- Peak intensity
- 637 cd
- Field angle (10%)
- 91.1°
- At 3 m
- 71 lx, Ø2.80 m
