Technical specifications
| Code | Watt | CRI | Voltage | Size | CCT | Notes |
|---|---|---|---|---|---|---|

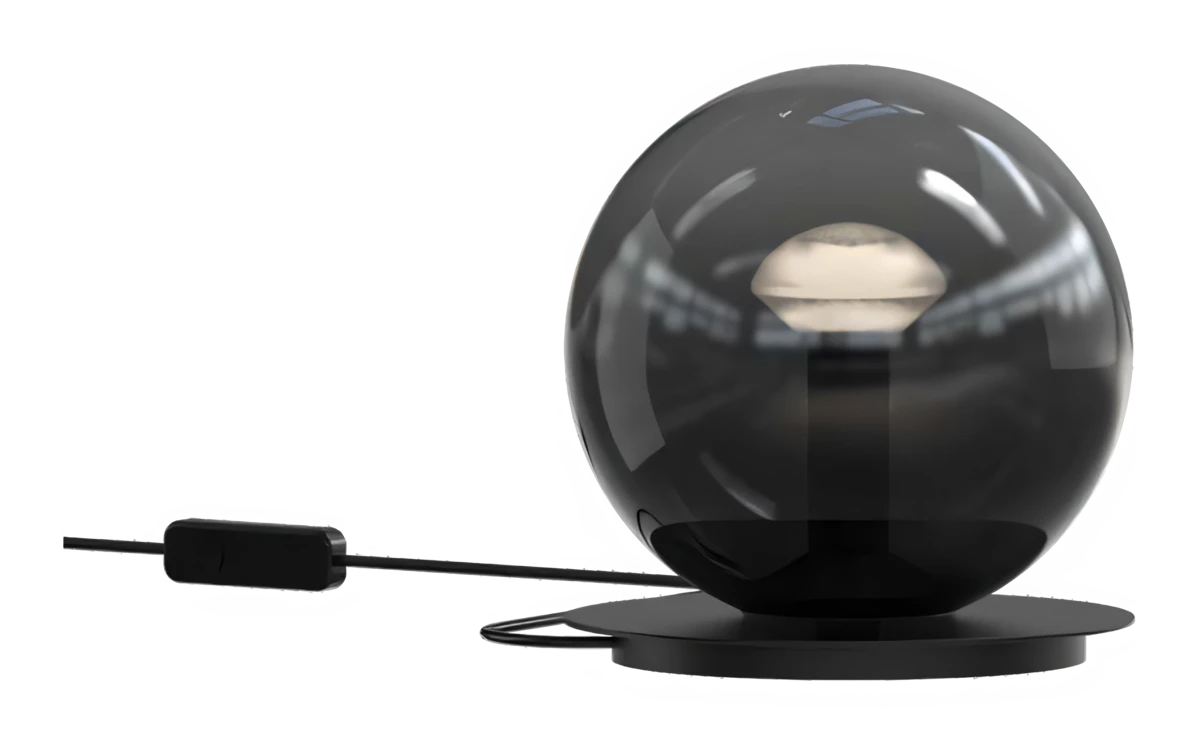

| TA-M10 | 8 W | 97 CRI | 18 V | 180 × 203 mm | 2700, 3000, 4000, 5000 K | 400 mA |
- LED source
- Citizen
- Colour temperature
- 2700, 3000, 4000, 5000 K
- Mounting
- Floor
- IP rating
- IP20
Photometry
TA-M10. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: estimated from catalogue data, not measured.
- Power
- 8 W
- Luminous flux
- 480 lm
- Efficacy
- 60 lm/W
- Peak intensity
- 153 cd
- Field angle (10%)
- 168.5°
- At 3 m
- 17 lx, Ø10.39 m
