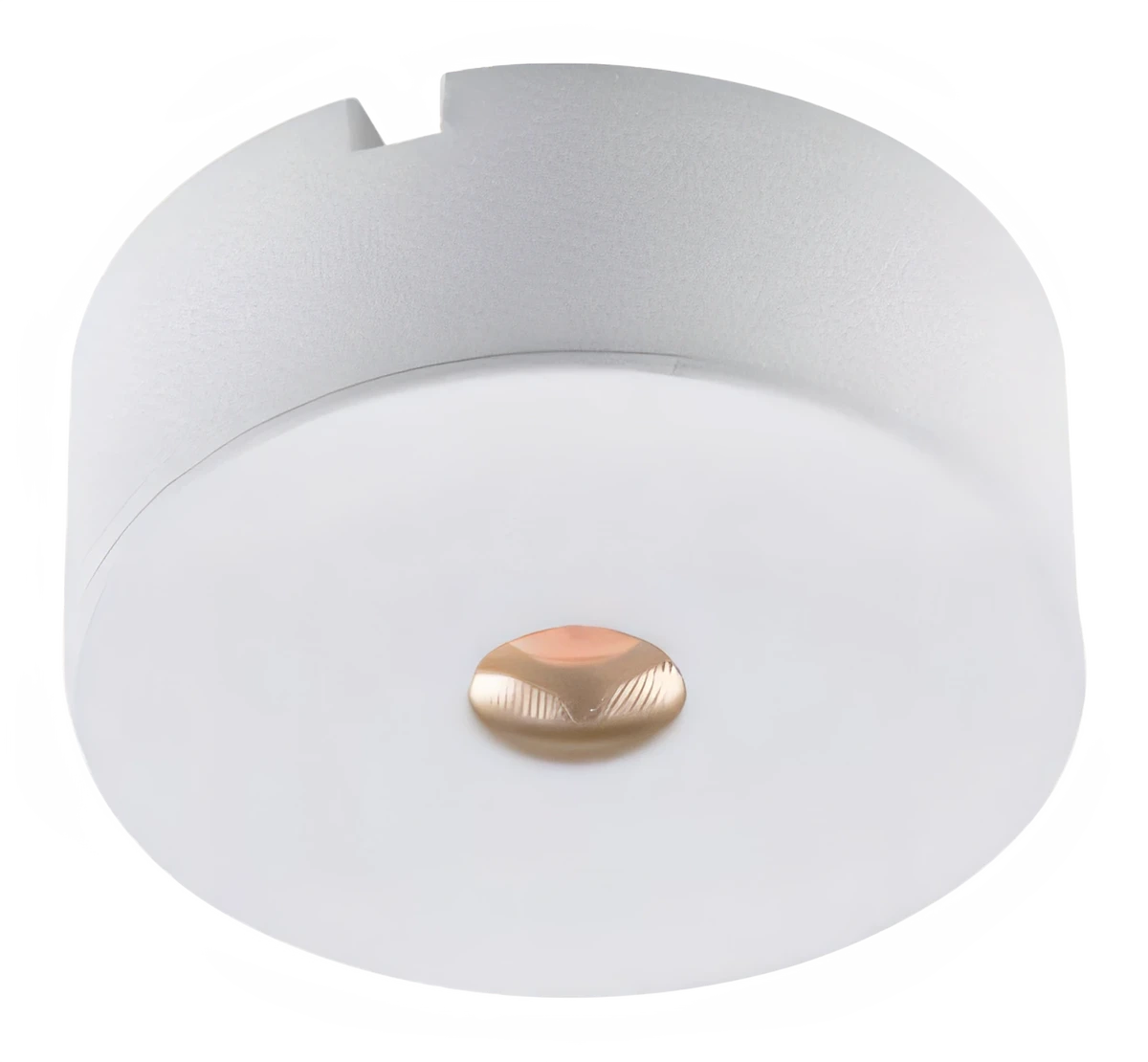

Dot DL1843

Technical specifications

CodeWattCRIVoltageFluxSizeBeamCCT
DL18433 W97 CRI24 V DC270 lmØ45 × 18 mm15° 24° 36° 55°2700, 3000, 4000 K
LED source
Citizen
Colour temperature
2700, 3000, 4000 K
Beam angles
15°, 24°, 36°, 55°
Mounting
Recessed, Surface
IP rating
IP20
Certifications
CE

Photometry

DL1843. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: calculated from catalogue data, not measured.

0°30°60°30°60° 646512930 cd/klm C0–C180 C90–C270
15°
Power
3 W
Luminous flux
270 lm
Efficacy
90 lm/W
Peak intensity
3,491 cd
Field angle (10%)
27.3°
At 3 m
388 lx, Ø0.79 m
0°30°60°30°60° 25425083 cd/klm C0–C180 C90–C270
24°
Power
3 W
Luminous flux
270 lm
Efficacy
90 lm/W
Peak intensity
1,372 cd
Field angle (10%)
43.7°
At 3 m
152 lx, Ø1.28 m
0°30°60°30°60° 11452289 cd/klm C0–C180 C90–C270
36°
Power
3 W
Luminous flux
270 lm
Efficacy
90 lm/W
Peak intensity
618 cd
Field angle (10%)
65.6°
At 3 m
69 lx, Ø1.95 m
0°30°60°30°60° 5061012 cd/klm C0–C180 C90–C270
55°
Power
3 W
Luminous flux
270 lm
Efficacy
90 lm/W
Peak intensity
273 cd
Field angle (10%)
100.2°
At 3 m
30 lx, Ø3.12 m
