Technical specifications
| Code | CRI | Voltage | Flux | Size | Beam | CCT | Cut-out | Notes |
|---|---|---|---|---|---|---|---|---|

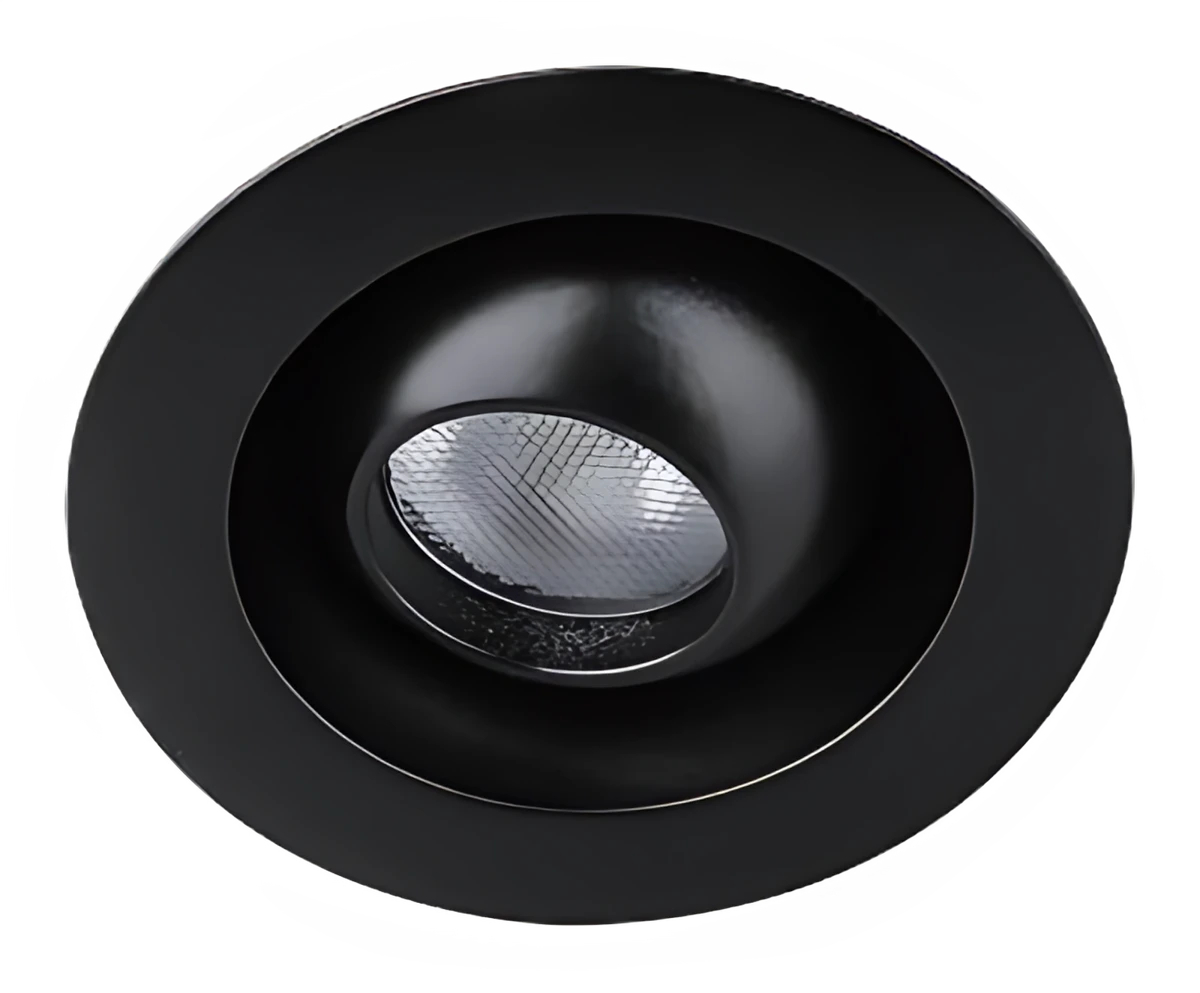

| DL1444 | 97 CRI | max 10 V, 24 V DC | 280 lm | Ø45 × 32 mm | 15° 24° 36° 50° | 2700, 3000, 4000 K | Ø40 mm | 350 mA |
- LED source
- Citizen
- Colour temperature
- 2700, 3000, 4000 K
- Beam angles
- 15°, 24°, 36°, 50°
- Mounting
- Recessed
- IP rating
- IP20
- Certifications
- CE
Photometry
DL1444. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: calculated from catalogue data, not measured.
- Luminous flux
- 280 lm
- Peak intensity
- 3,620 cd
- Field angle (10%)
- 27.3°
- At 3 m
- 402 lx, Ø0.79 m
- Luminous flux
- 280 lm
- Peak intensity
- 1,423 cd
- Field angle (10%)
- 43.7°
- At 3 m
- 158 lx, Ø1.28 m
- Luminous flux
- 280 lm
- Peak intensity
- 641 cd
- Field angle (10%)
- 65.6°
- At 3 m
- 71 lx, Ø1.95 m
- Luminous flux
- 280 lm
- Peak intensity
- 340 cd
- Field angle (10%)
- 91.1°
- At 3 m
- 38 lx, Ø2.80 m
