Technical specifications
| Code | CRI | Voltage | Flux | Size | Beam | CCT | Notes |
|---|---|---|---|---|---|---|---|

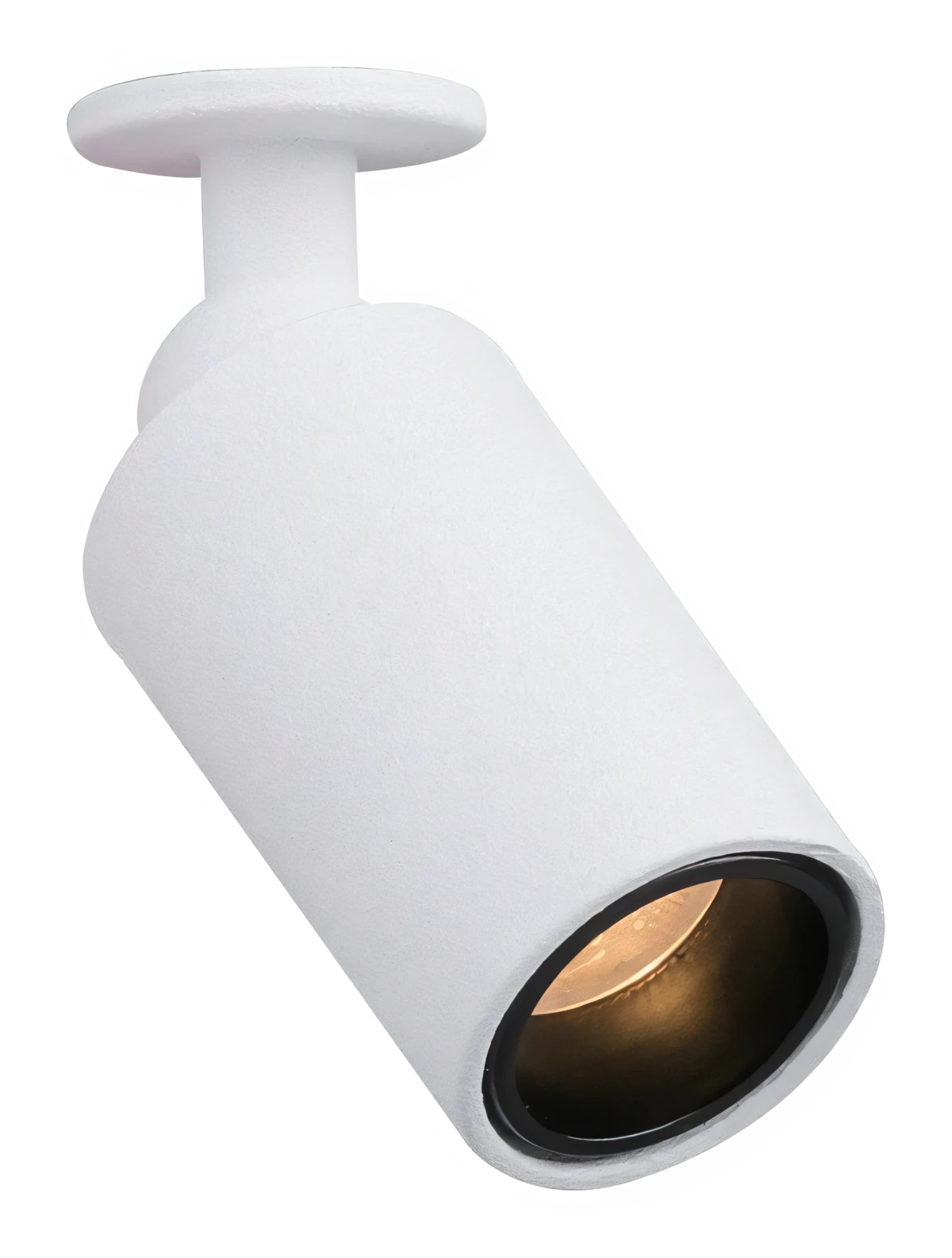

| DL1248 | 97 CRI | max 3 V | 72 lm | Ø14 base x 12 mm deep; Ø16 head x 27 mm long | 15° 24° 36° 60° | 2700, 3000, 4000 K | 350 mA |
- LED source
- Citizen
- Colour temperature
- 2700, 3000, 4000 K
- Beam angles
- 15°, 24°, 36°, 60°
- Mounting
- Surface
- IP rating
- IP20
- Certifications
- CE
Photometry
DL1248. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: calculated from catalogue data, not measured.
- Luminous flux
- 72 lm
- Peak intensity
- 931 cd
- Field angle (10%)
- 27.3°
- At 3 m
- 103 lx, Ø0.79 m
- Luminous flux
- 72 lm
- Peak intensity
- 366 cd
- Field angle (10%)
- 43.7°
- At 3 m
- 41 lx, Ø1.28 m
- Luminous flux
- 72 lm
- Peak intensity
- 165 cd
- Field angle (10%)
- 65.6°
- At 3 m
- 18 lx, Ø1.95 m
- Luminous flux
- 72 lm
- Peak intensity
- 62 cd
- Field angle (10%)
- 109.4°
- At 3 m
- 7 lx, Ø3.46 m
