Technical specifications
| Code | CRI | Voltage | Flux | Size | Beam | CCT | Cut-out |
|---|---|---|---|---|---|---|---|

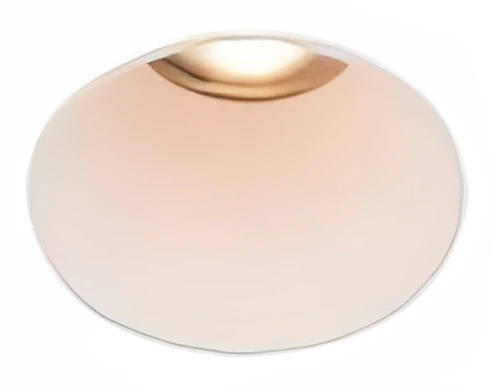

| DL1207 | 97 CRI | max 3 V | 160 lm | Ø50 × 32 mm (Ø20 aperture) | 15° 24° 36° 60° | 2700, 3000, 4000 K | Ø30 mm |
| DL1208 | 97 CRI | 2 × max 3 V | 320 lm | Ø85 × 32 mm (2 × Ø20 aperture) | 15° 24° 36° 60° | 2700, 3000, 4000 K | Ø63 mm |
- LED source
- Citizen
- Colour temperature
- 2700, 3000, 4000 K
- Beam angles
- 15°, 24°, 36°, 60°
- Mounting
- Recessed
- IP rating
- IP44
- Certifications
- CE
- Note
- 700 mA
Photometry
DL1207. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: measured with a goniophotometer where marked, otherwise calculated from catalogue data.
- Data
- Measured, 2 September 2025
- Power
- 2 W, 3000 K
- Luminous flux
- 148 lm
- Efficacy
- 74 lm/W
- Peak intensity
- 588 cd
- Beam angle (50%)
- 24.6°
- Field angle (10%)
- 49°
- At 3 m
- 59 lx, Ø1.31 m
- Luminous flux
- 160 lm
- Peak intensity
- 2,069 cd
- Field angle (10%)
- 27.3°
- At 3 m
- 230 lx, Ø0.79 m
- Luminous flux
- 160 lm
- Peak intensity
- 813 cd
- Field angle (10%)
- 43.7°
- At 3 m
- 90 lx, Ø1.28 m
- Luminous flux
- 160 lm
- Peak intensity
- 138 cd
- Field angle (10%)
- 109.4°
- At 3 m
- 15 lx, Ø3.46 m
