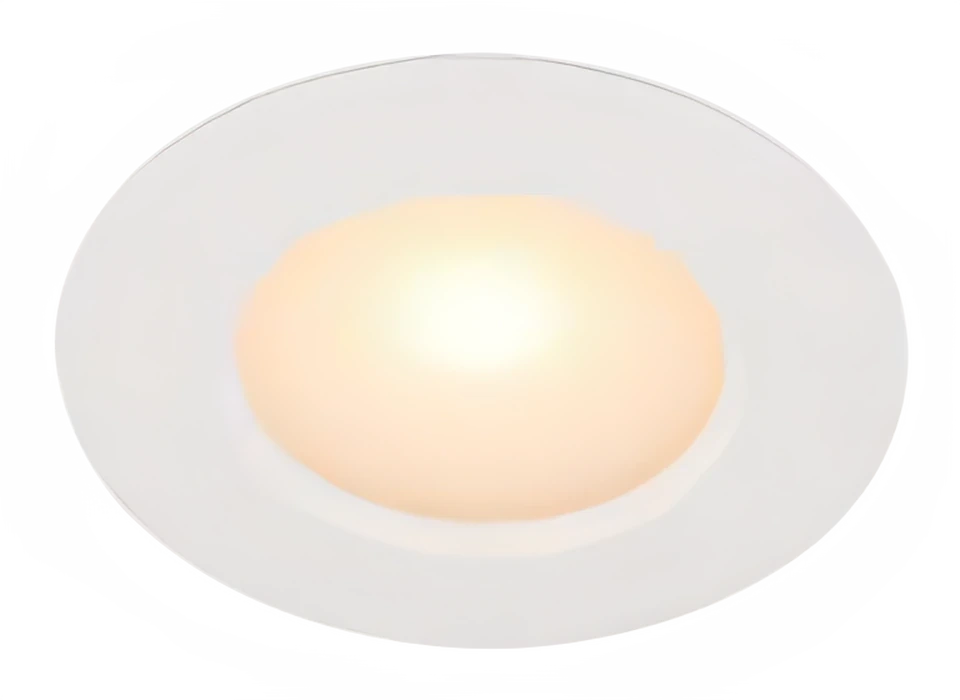

Dot DL1158

Technical specifications

CodeWattCRIVoltageFluxSizeBeamCCTCut-outNotes
DL11583 W97 CRImax 10 V260 lmØ70 × 15 / 17 mm15° 24° 36° 50° 55° 60°2700, 3000, 4000 KØ60 mm350 mA
LED source
Citizen
Colour temperature
2700, 3000, 4000 K
Beam angles
15°, 24°, 36°, 50°, 55°, 60°
Mounting
Recessed, Surface
IP rating
IP20
Certifications
CE

Photometry

DL1158. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: calculated from catalogue data, not measured.

0°30°60°30°60° 646512930 cd/klm C0–C180 C90–C270
15°
Power
3 W
Luminous flux
260 lm
Efficacy
87 lm/W
Peak intensity
3,362 cd
Field angle (10%)
27.3°
At 3 m
374 lx, Ø0.79 m
0°30°60°30°60° 25425083 cd/klm C0–C180 C90–C270
24°
Power
3 W
Luminous flux
260 lm
Efficacy
87 lm/W
Peak intensity
1,322 cd
Field angle (10%)
43.7°
At 3 m
147 lx, Ø1.28 m
0°30°60°30°60° 11452289 cd/klm C0–C180 C90–C270
36°
Power
3 W
Luminous flux
260 lm
Efficacy
87 lm/W
Peak intensity
595 cd
Field angle (10%)
65.6°
At 3 m
66 lx, Ø1.95 m
0°30°60°30°60° 6071213 cd/klm C0–C180 C90–C270
50°
Power
3 W
Luminous flux
260 lm
Efficacy
87 lm/W
Peak intensity
315 cd
Field angle (10%)
91.1°
At 3 m
35 lx, Ø2.80 m
