Technical specifications
| Code | Watt | CRI | Voltage | Size | Beam | CCT |
|---|---|---|---|---|---|---|

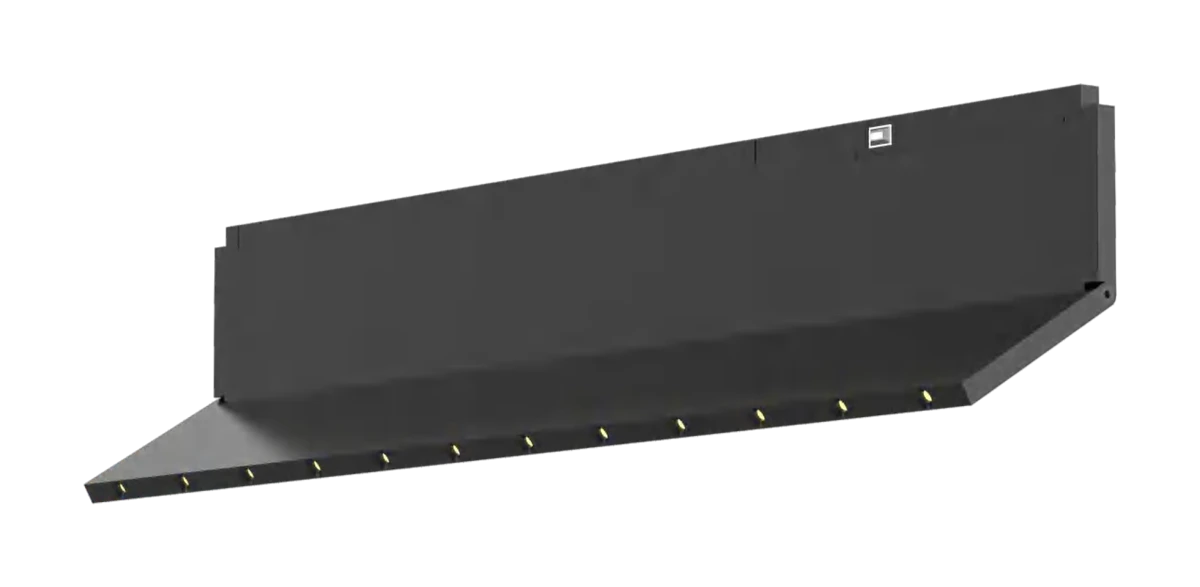

| GLM12300 mm | 8 W | 97 CRI | 48 V DC | 300 × 5 × 68 mm | 60° | 2700, 3000, 4000, 5000 K |
- LED source
- Citizen
- Colour temperature
- 2700, 3000, 4000, 5000 K
- Beam angles
- 60°
- Control
- Casambi, DALI, Tuya, 0–10 V
- Mounting
- Magnetic track
Photometry
GLM12. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: estimated from catalogue data, not measured.
- Power
- 8 W
- Luminous flux
- 600 lm
- Efficacy
- 75 lm/W
- Peak intensity
- 516 cd
- Field angle (10%)
- 109.4°
- At 3 m
- 57 lx, Ø3.46 m
