Technical specifications
| Code | Watt | CRI | Voltage | Flux | Size | Beam | CCT | Cut-out |
|---|---|---|---|---|---|---|---|---|

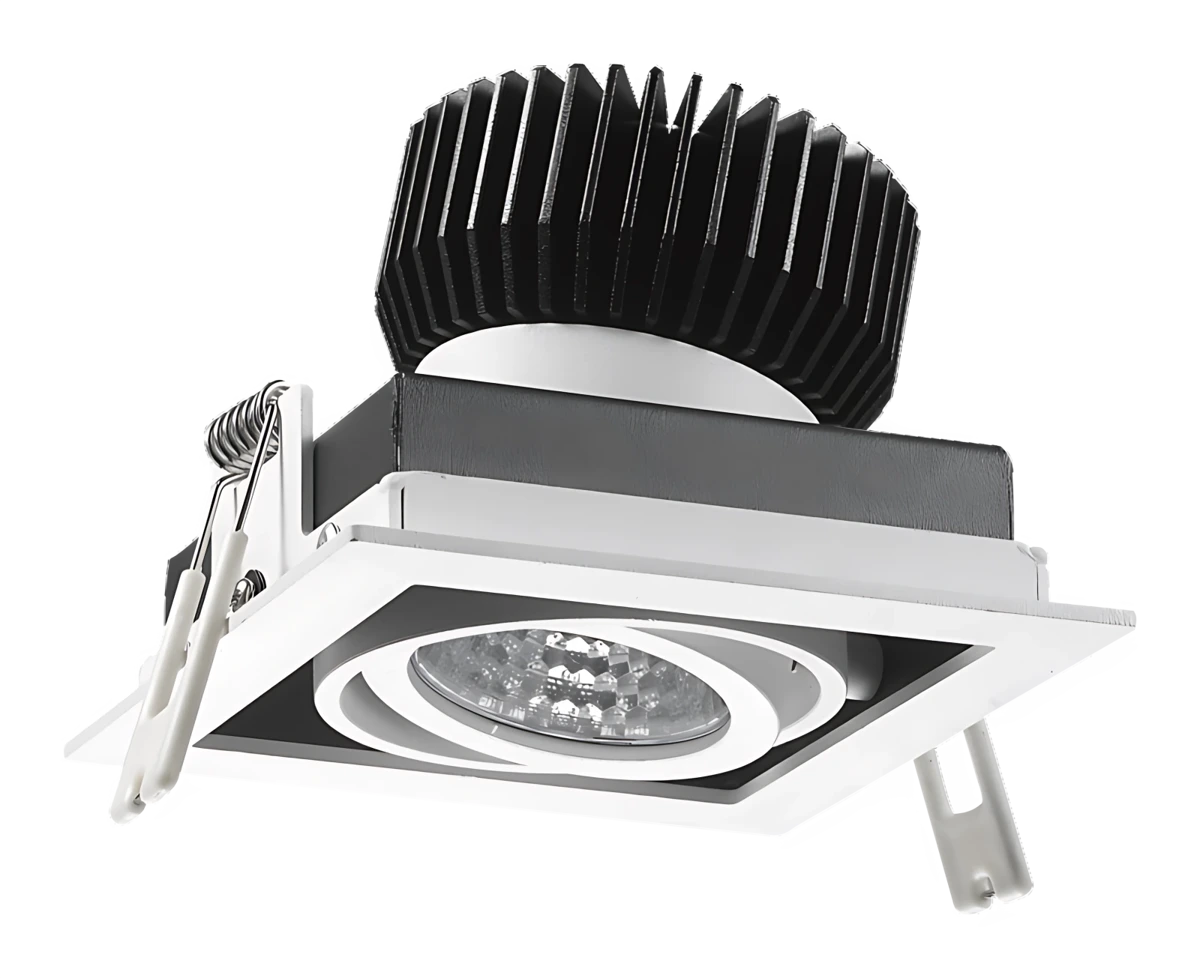

| D3-7901 | 8 W | 97 CRI | 220–240 V AC | 850–950 lm | 100 × 100 x H73 mm | 18° 24° 36° | 3000, 4000 K | Ø90 mm |
| D3-7901 | 14 W | 97 CRI | 220–240 V AC | 1500–1600 lm | 100 × 100 x H73 mm | 18° 24° 36° | 3000, 4000 K | Ø90 mm |
- LED source
- Citizen
- Colour temperature
- 3000, 4000 K
- Beam angles
- 18°, 24°, 36°
- Control
- On/Off, Triac, Casambi, DALI, 0–10 V
- Mounting
- Recessed
- IP rating
- IP20
- Certifications
- CE, RoHS, EMC, LVD
Photometry
D3-7901. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: calculated from catalogue data, not measured.
- Power
- 14 W
- Luminous flux
- 752 lm
- Efficacy
- 54 lm/W
- Peak intensity
- 6,768 cd
- Field angle (10%)
- 32.8°
- At 3 m
- 752 lx, Ø0.95 m
- Power
- 14 W
- Luminous flux
- 1,373 lm
- Efficacy
- 98 lm/W
- Peak intensity
- 3,144 cd
- Field angle (10%)
- 65.6°
- At 3 m
- 349 lx, Ø1.95 m
- Power
- 14 W
- Luminous flux
- 1,500 lm
- Efficacy
- 107 lm/W
- Peak intensity
- 7,625 cd
- Field angle (10%)
- 43.7°
- At 3 m
- 847 lx, Ø1.28 m
