Technical specifications
| Code | Watt | CRI | Flux | Size | Beam | CCT | Cut-out |
|---|---|---|---|---|---|---|---|

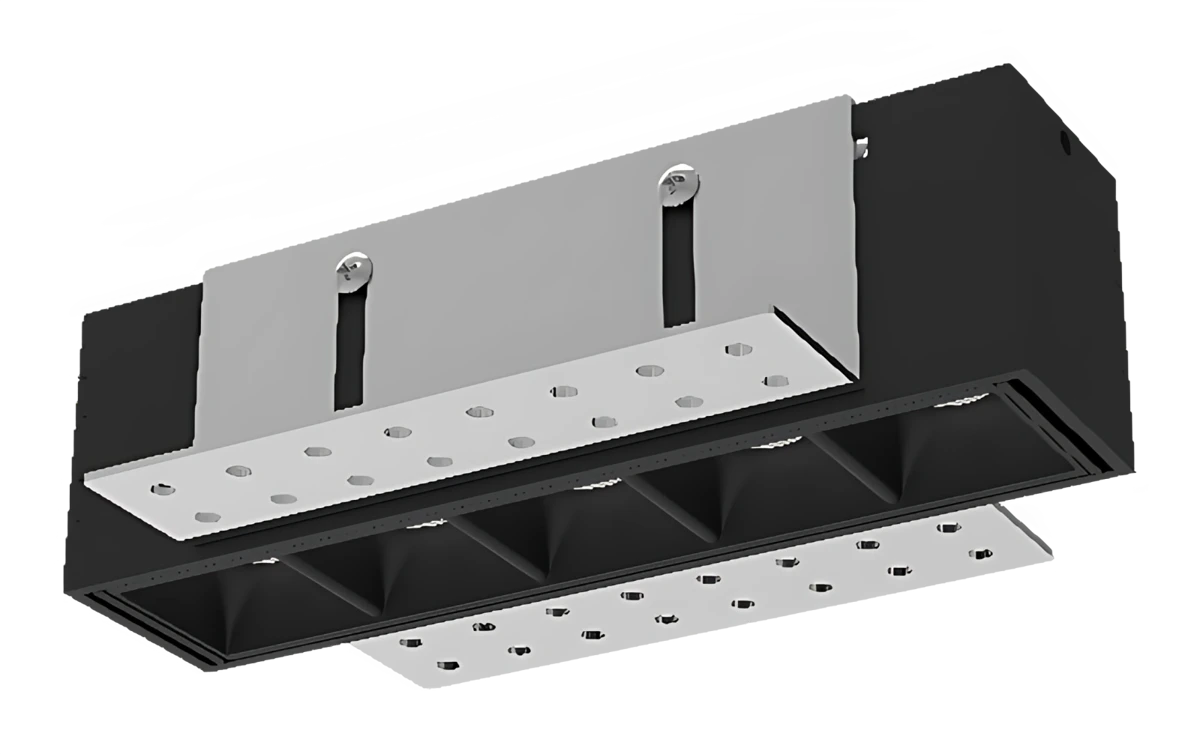

| D3-5205 | 8 W | 97 CRI | 700–800 lm | L142 x W85 x H43 mm | 15° 30° 45° | 3000, 4000 K | Ø145 mm |
- LED source
- Citizen
- Colour temperature
- 3000, 4000 K
- Beam angles
- 15°, 30°, 45°
- Control
- Triac, Casambi, DALI, 0–10 V
- Mounting
- Recessed
- IP rating
- IP20
- Certifications
- CE, RoHS, EMC, LVD
Photometry
D3-5205. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: calculated from catalogue data, not measured.
- Power
- 8 W
- Luminous flux
- 355 lm
- Efficacy
- 44 lm/W
- Peak intensity
- 4,584 cd
- Field angle (10%)
- 27.3°
- At 3 m
- 509 lx, Ø0.79 m
- Power
- 8 W
- Luminous flux
- 562 lm
- Efficacy
- 70 lm/W
- Peak intensity
- 1,840 cd
- Field angle (10%)
- 54.7°
- At 3 m
- 204 lx, Ø1.61 m
- Power
- 8 W
- Luminous flux
- 564 lm
- Efficacy
- 70 lm/W
- Peak intensity
- 837 cd
- Field angle (10%)
- 82°
- At 3 m
- 93 lx, Ø2.49 m
