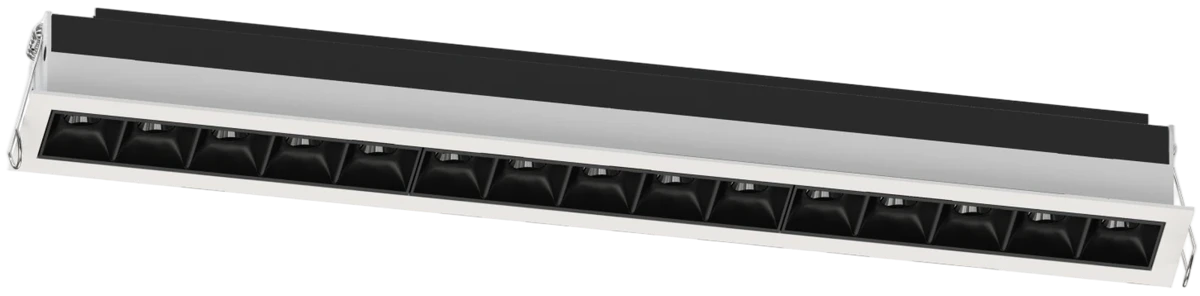

D3-5015

Technical specifications

CodeWattCRIVoltageFluxSizeBeamCCTCut-out
D3-501525 W97 CRI220–240 V AC2100–2300 lmL417 x W48 x H50 mm15° 30° 45°3000, 4000 KØ409 mm
LED source
Citizen
Colour temperature
3000, 4000 K
Beam angles
15°, 30°, 45°
Control
On/Off, Triac, Casambi, DALI, 0–10 V
Mounting
Recessed
IP rating
IP20
Certifications
CE, RoHS, EMC, LVD

Photometry

D3-5015. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: calculated from catalogue data, not measured.

0°30°60°30°60° 646512930 cd/klm C0–C180 C90–C270
15°
Power
25 W
Luminous flux
886 lm
Efficacy
35 lm/W
Peak intensity
11,460 cd
Field angle (10%)
27.3°
At 3 m
1,273 lx, Ø0.79 m
0°30°60°30°60° 16373273 cd/klm C0–C180 C90–C270
30°
Power
25 W
Luminous flux
1,954 lm
Efficacy
78 lm/W
Peak intensity
6,396 cd
Field angle (10%)
54.7°
At 3 m
711 lx, Ø1.61 m
0°30°60°30°60° 7431485 cd/klm C0–C180 C90–C270
45°
Power
25 W
Luminous flux
2,126 lm
Efficacy
85 lm/W
Peak intensity
3,156 cd
Field angle (10%)
82°
At 3 m
351 lx, Ø2.49 m
