Technical specifications
| Code | Watt | CRI | Voltage | Flux | Size | Beam | CCT | Cut-out |
|---|---|---|---|---|---|---|---|---|

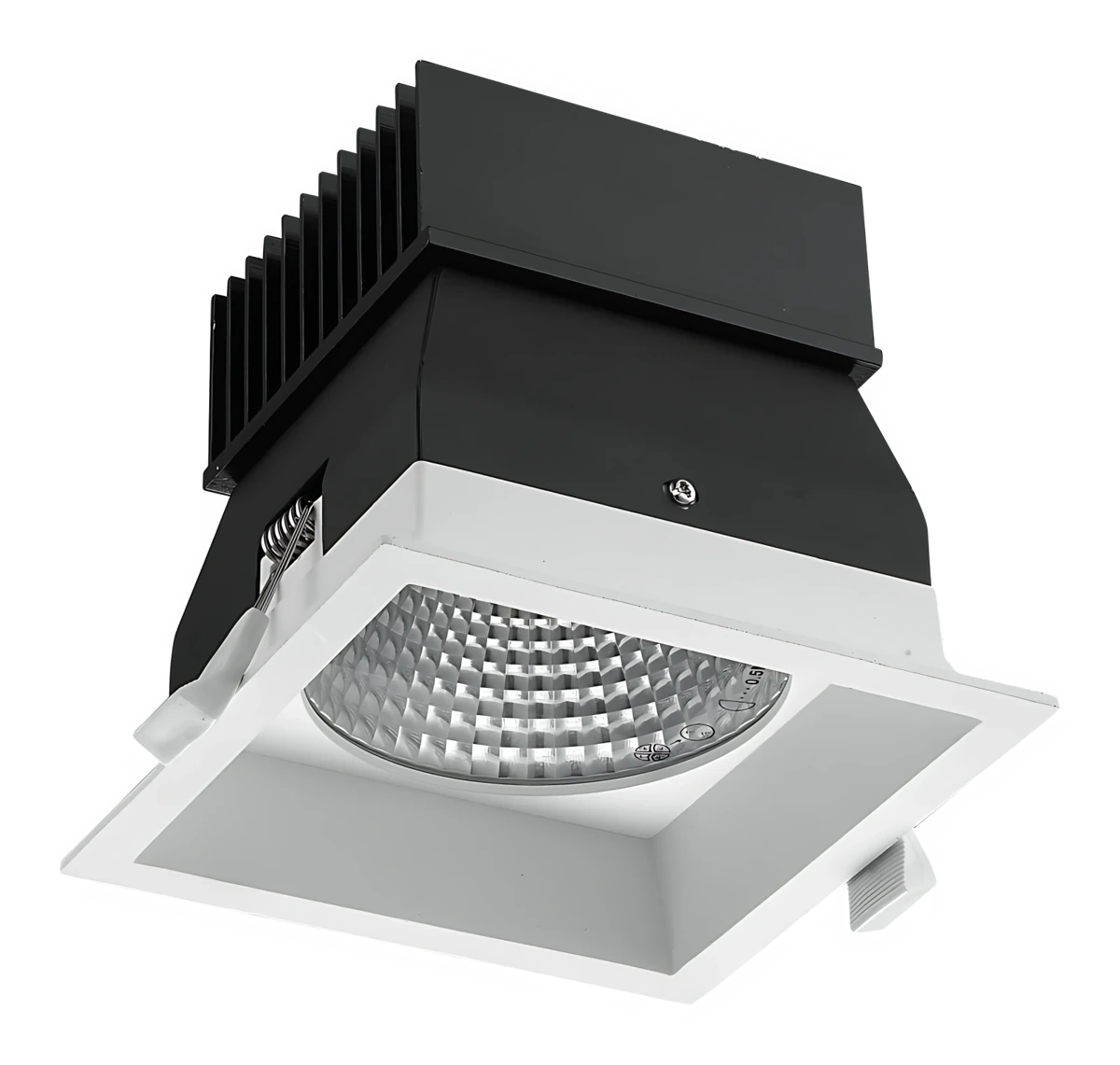

| D3-5001 | 20 W | 97 CRI | 220–240 V AC | 2100–2200 lm | 128 × 128 × 113 mm | 20° 30° 50° | 3000, 4000 K | Ø115 mm |
| D3-5001 | 28 W | 97 CRI | 220–240 V AC | 2600–2800 lm | 128 × 128 × 113 mm | 20° 30° 50° | 3000, 4000 K | Ø115 mm |
- LED source
- Citizen
- Colour temperature
- 3000, 4000 K
- Beam angles
- 20°, 30°, 50°
- Control
- On/Off, Triac, Casambi, DALI, 0–10 V
- Mounting
- Recessed
- IP rating
- IP44
- Certifications
- CE, RoHS, EMC, LVD
Photometry
D3-5001. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: calculated from catalogue data, not measured.
- Power
- 28 W
- Luminous flux
- 1,642 lm
- Efficacy
- 59 lm/W
- Peak intensity
- 11,980 cd
- Field angle (10%)
- 36.5°
- At 3 m
- 1,331 lx, Ø1.06 m
- Power
- 28 W
- Luminous flux
- 2,269 lm
- Efficacy
- 81 lm/W
- Peak intensity
- 7,425 cd
- Field angle (10%)
- 54.7°
- At 3 m
- 825 lx, Ø1.61 m
- Power
- 28 W
- Luminous flux
- 3,034 lm
- Efficacy
- 108 lm/W
- Peak intensity
- 3,680 cd
- Field angle (10%)
- 91.1°
- At 3 m
- 409 lx, Ø2.80 m
