Technical specifications

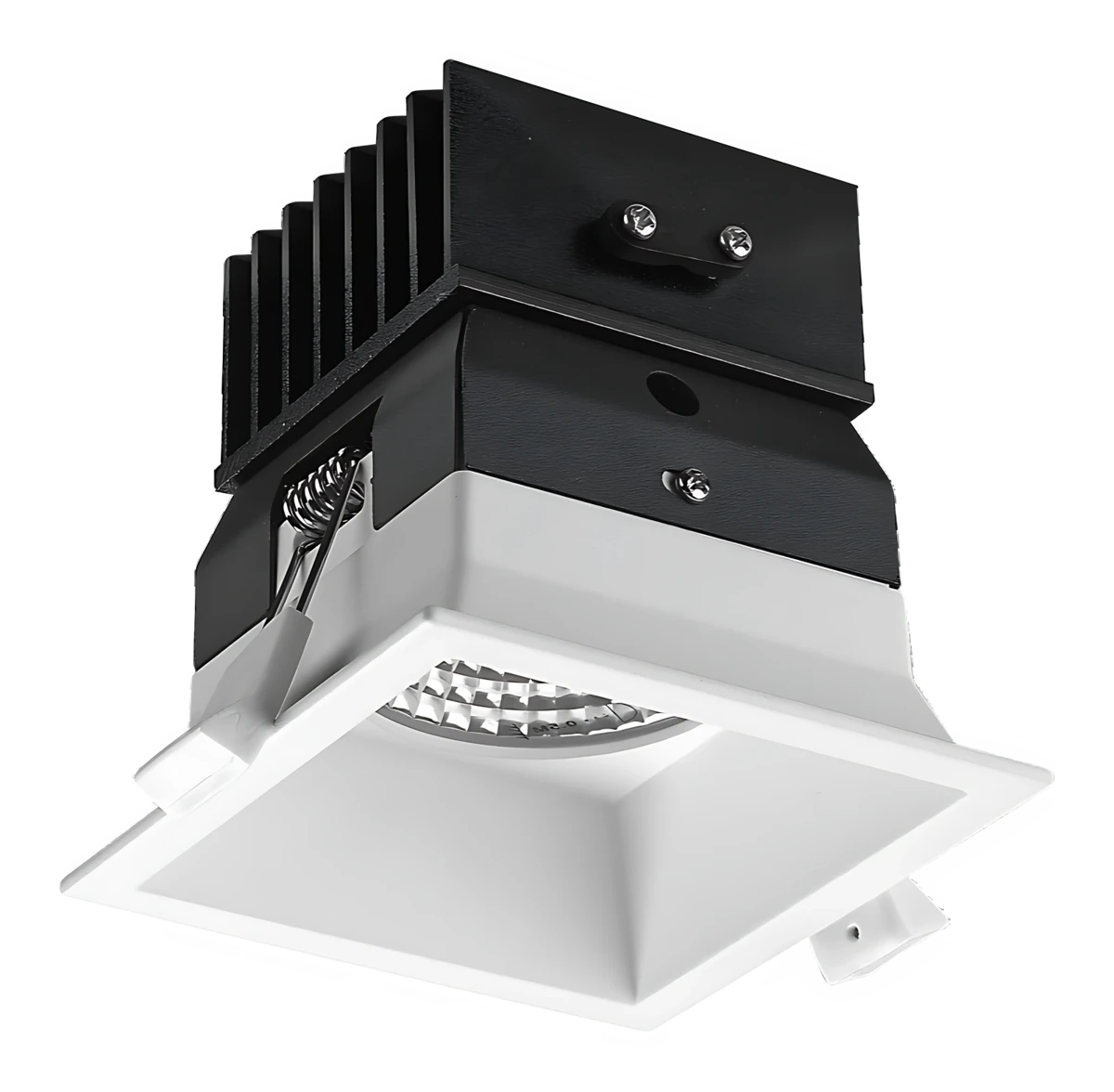

| Code | Watt | CRI | Voltage | Flux | Size | Beam | CCT | Cut-out |
|---|---|---|---|---|---|---|---|---|
| D3-5000 | 8 W | 97 CRI | 220–240 V AC | 700–750 lm | 96 × 96 × 91 mm | 25° 45° | 3000, 4000 K | Ø85 mm |
| D3-5000 | 14 W | 97 CRI | 220–240 V AC | 1200–1300 lm | 96 × 96 × 91 mm | 25° 45° | 3000, 4000 K | Ø85 mm |
- LED source
- Citizen
- Colour temperature
- 3000, 4000 K
- Beam angles
- 25°, 45°
- Control
- On/Off, Triac, Casambi, DALI, 0–10 V
- Mounting
- Recessed
- IP rating
- IP44
- Certifications
- CE, RoHS, EMC, LVD
Photometry
D3-5000. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: calculated from catalogue data, not measured.
- Power
- 14 W
- Luminous flux
- 369 lm
- Efficacy
- 26 lm/W
- Peak intensity
- 1,728 cd
- Field angle (10%)
- 45.6°
- At 3 m
- 192 lx, Ø1.33 m
- Power
- 14 W
- Luminous flux
- 582 lm
- Efficacy
- 42 lm/W
- Peak intensity
- 864 cd
- Field angle (10%)
- 82°
- At 3 m
- 96 lx, Ø2.49 m
