Technical specifications
| Code | Watt | CRI | Flux | Size | Beam | CCT | Cut-out |
|---|---|---|---|---|---|---|---|

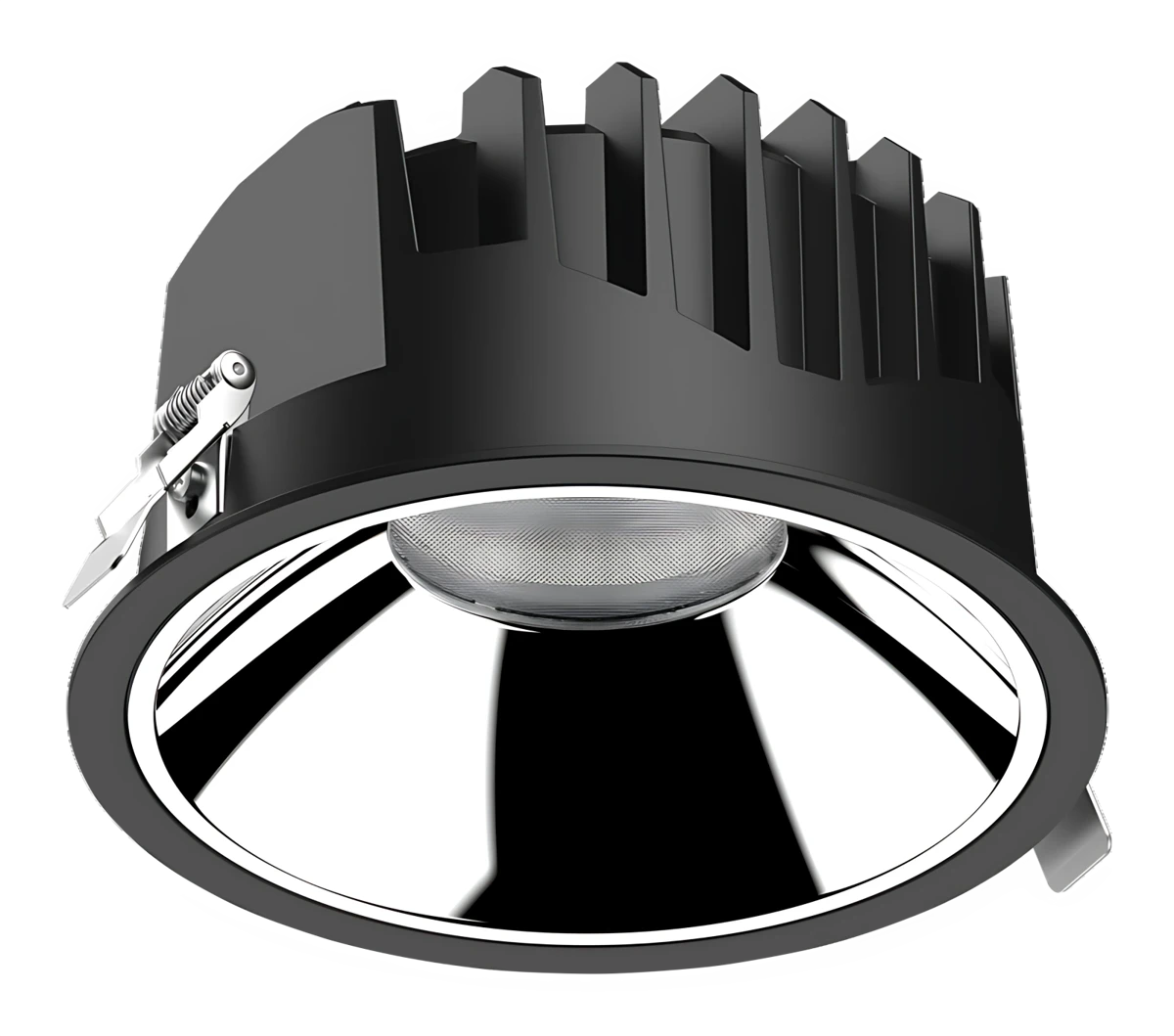

| D3-4616 | 40 W | 97 CRI | 3400–3500 lm | Ø180 × 94 mm | 24° 36° 55° | 3000, 4000 K | Ø165 mm |
- LED source
- Citizen
- Colour temperature
- 3000, 4000 K
- Beam angles
- 24°, 36°, 55°
- Control
- Triac, Casambi, DALI, 0–10 V
- Mounting
- Recessed
- IP rating
- IP20
- Certifications
- CE, RoHS, EMC, LVD
Photometry
D3-4616. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: calculated from catalogue data, not measured.
- Power
- 40 W
- Luminous flux
- 2,683 lm
- Efficacy
- 67 lm/W
- Peak intensity
- 13,640 cd
- Field angle (10%)
- 43.7°
- At 3 m
- 1,516 lx, Ø1.28 m
- Power
- 40 W
- Luminous flux
- 3,400 lm
- Efficacy
- 85 lm/W
- Peak intensity
- 7,783 cd
- Field angle (10%)
- 65.6°
- At 3 m
- 865 lx, Ø1.95 m
- Power
- 40 W
- Luminous flux
- 3,400 lm
- Efficacy
- 85 lm/W
- Peak intensity
- 3,442 cd
- Field angle (10%)
- 100.2°
- At 3 m
- 382 lx, Ø3.12 m
