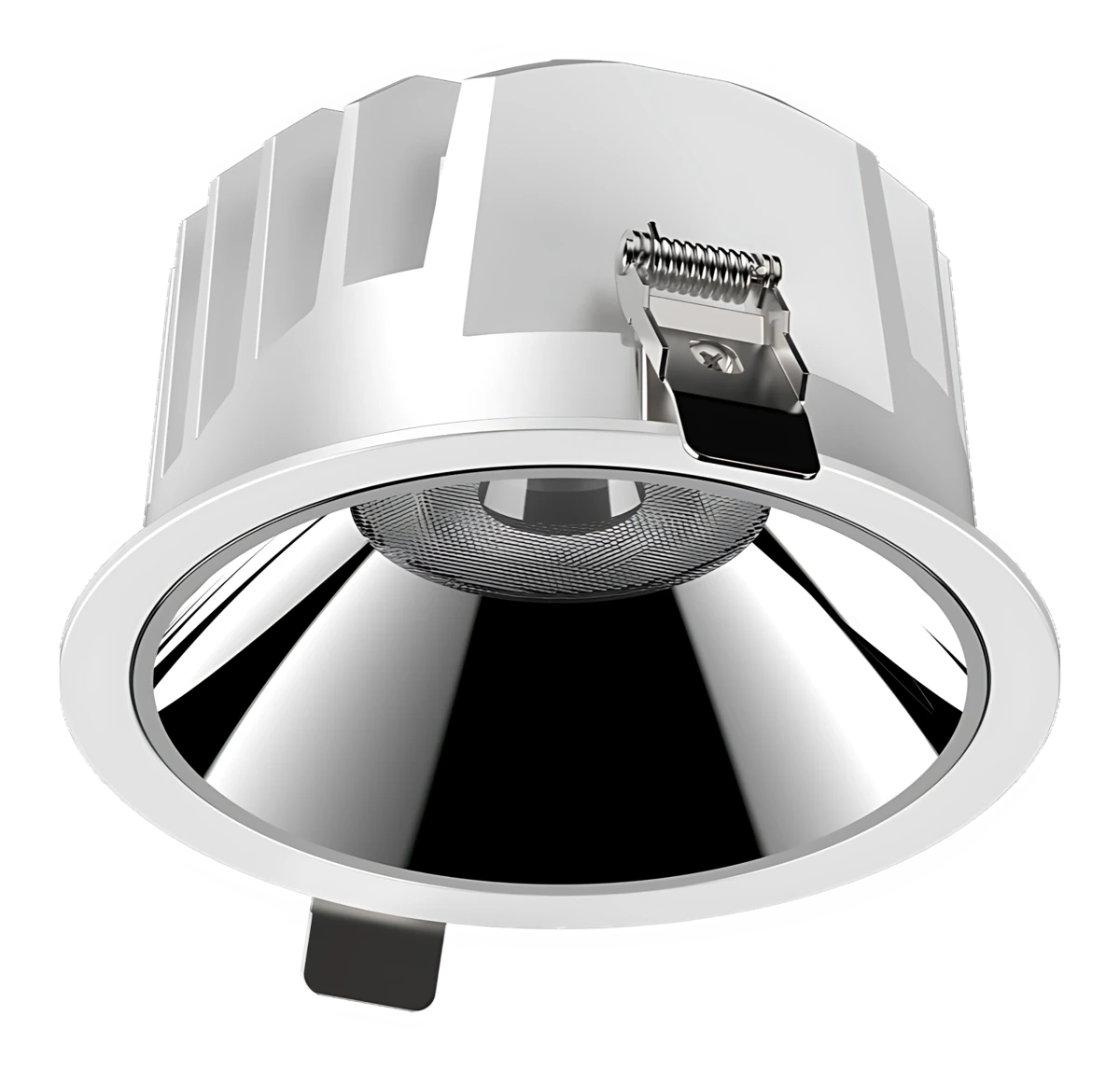

Technical specifications
| Code | Watt | CRI | Flux | Size | Beam | CCT | Cut-out |
|---|---|---|---|---|---|---|---|
| D3-4614H | 25 W | 97 CRI | 2100–2200 lm | Ø140 × 73 mm | 12° 24° 36° 55° | 3000, 4000 K | Ø125 mm |
- LED source
- Citizen
- Colour temperature
- 3000, 4000 K
- Beam angles
- 12°, 24°, 36°, 55°
- Control
- Triac, Casambi, DALI, 0–10 V
- Mounting
- Recessed
- IP rating
- IP20
- Certifications
- CE, RoHS, EMC, LVD
Photometry
D3-4614H. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: calculated from catalogue data, not measured.
- Power
- 25 W
- Luminous flux
- 3,109 lm
- Efficacy
- 124 lm/W
- Peak intensity
- 7,116 cd
- Field angle (10%)
- 65.6°
- At 3 m
- 791 lx, Ø1.95 m
- Power
- 25 W
- Luminous flux
- 2,940 lm
- Efficacy
- 118 lm/W
- Peak intensity
- 2,976 cd
- Field angle (10%)
- 100.2°
- At 3 m
- 331 lx, Ø3.12 m
- Power
- 25 W
- Luminous flux
- 2,100 lm
- Efficacy
- 84 lm/W
- Peak intensity
- 42,363 cd
- Field angle (10%)
- 21.9°
- At 3 m
- 4,707 lx, Ø0.63 m
- Power
- 25 W
- Luminous flux
- 2,100 lm
- Efficacy
- 84 lm/W
- Peak intensity
- 10,675 cd
- Field angle (10%)
- 43.7°
- At 3 m
- 1,186 lx, Ø1.28 m
