Technical specifications
| Code | Watt | CRI | Flux | Size | Beam | CCT | Cut-out |
|---|---|---|---|---|---|---|---|

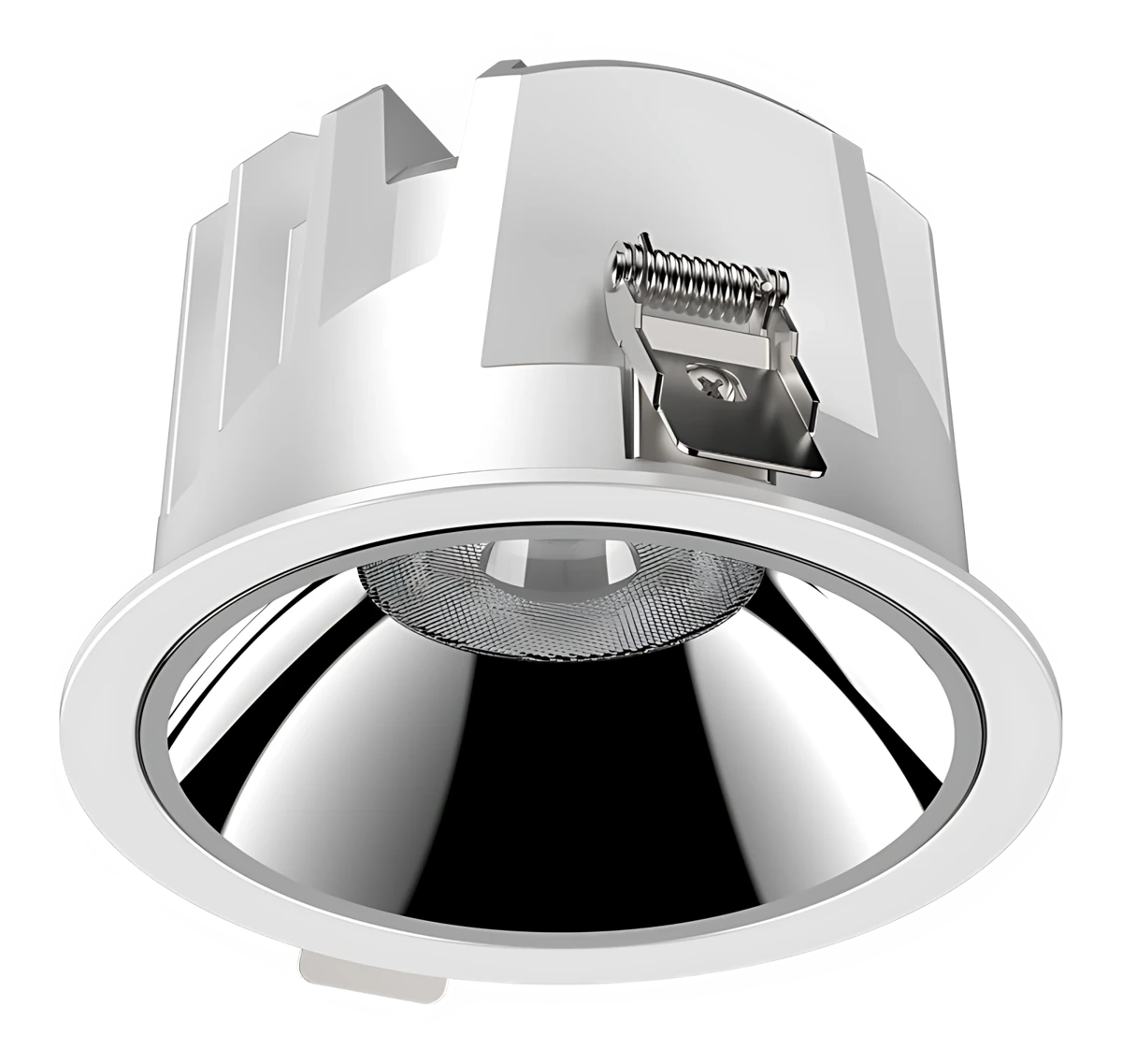

| D3-4613H | 18 W | 97 CRI | 1500–1600 lm | Ø101 × 60 mm | 12° 24° 36° 55° | 3000, 4000 K | Ø90 mm |
- LED source
- Citizen
- Colour temperature
- 3000, 4000 K
- Beam angles
- 12°, 24°, 36°, 55°
- Control
- Triac, Casambi, DALI, 0–10 V
- Mounting
- Recessed
- IP rating
- IP20
- Certifications
- CE, RoHS, EMC, LVD
Photometry
D3-4613H. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: calculated from catalogue data, not measured.
- Power
- 18 W
- Luminous flux
- 984 lm
- Efficacy
- 55 lm/W
- Peak intensity
- 5,000 cd
- Field angle (10%)
- 43.7°
- At 3 m
- 556 lx, Ø1.28 m
- Power
- 18 W
- Luminous flux
- 1,428 lm
- Efficacy
- 79 lm/W
- Peak intensity
- 3,268 cd
- Field angle (10%)
- 65.6°
- At 3 m
- 363 lx, Ø1.95 m
- Power
- 18 W
- Luminous flux
- 1,500 lm
- Efficacy
- 83 lm/W
- Peak intensity
- 30,259 cd
- Field angle (10%)
- 21.9°
- At 3 m
- 3,362 lx, Ø0.63 m
- Power
- 18 W
- Luminous flux
- 1,500 lm
- Efficacy
- 83 lm/W
- Peak intensity
- 1,519 cd
- Field angle (10%)
- 100.2°
- At 3 m
- 169 lx, Ø3.12 m
