Technical specifications
| Code | Watt | CRI | Flux | Size | Beam | CCT | Cut-out |
|---|---|---|---|---|---|---|---|

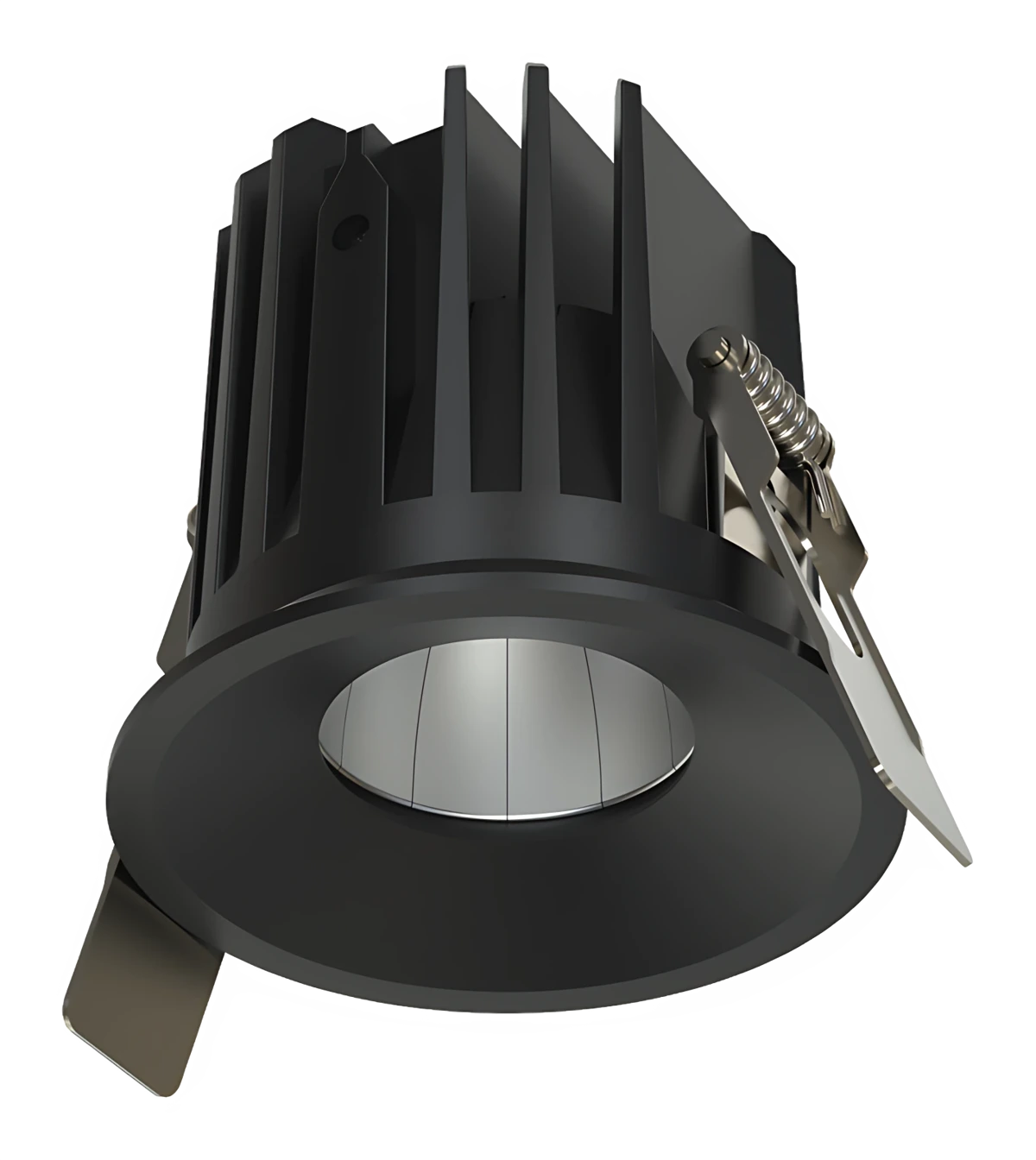

| D3-4305G | 6 W | 97 CRI | 600–700 lm | Ø63 x H57 mm | 18° 26° 38° 50° | 3000, 4000 K | Ø55 mm |
- LED source
- Citizen
- Colour temperature
- 3000, 4000 K
- Beam angles
- 18°, 26°, 38°, 50°
- Control
- Triac, Casambi, DALI, 0–10 V
- Mounting
- Recessed
- IP rating
- IP44
- Certifications
- CE, RoHS, EMC, LVD
Photometry
D3-4305G. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: calculated from catalogue data, not measured.
- Power
- 6 W
- Luminous flux
- 394 lm
- Efficacy
- 66 lm/W
- Peak intensity
- 1,710 cd
- Field angle (10%)
- 47.4°
- At 3 m
- 190 lx, Ø1.39 m
- Power
- 6 W
- Luminous flux
- 600 lm
- Efficacy
- 100 lm/W
- Peak intensity
- 5,397 cd
- Field angle (10%)
- 32.8°
- At 3 m
- 600 lx, Ø0.95 m
- Power
- 6 W
- Luminous flux
- 600 lm
- Efficacy
- 100 lm/W
- Peak intensity
- 1,236 cd
- Field angle (10%)
- 69.3°
- At 3 m
- 137 lx, Ø2.07 m
- Power
- 6 W
- Luminous flux
- 600 lm
- Efficacy
- 100 lm/W
- Peak intensity
- 728 cd
- Field angle (10%)
- 91.1°
- At 3 m
- 81 lx, Ø2.80 m
