Technical specifications
| Code | Watt | CRI | Flux | Size | Beam | CCT | Cut-out |
|---|---|---|---|---|---|---|---|

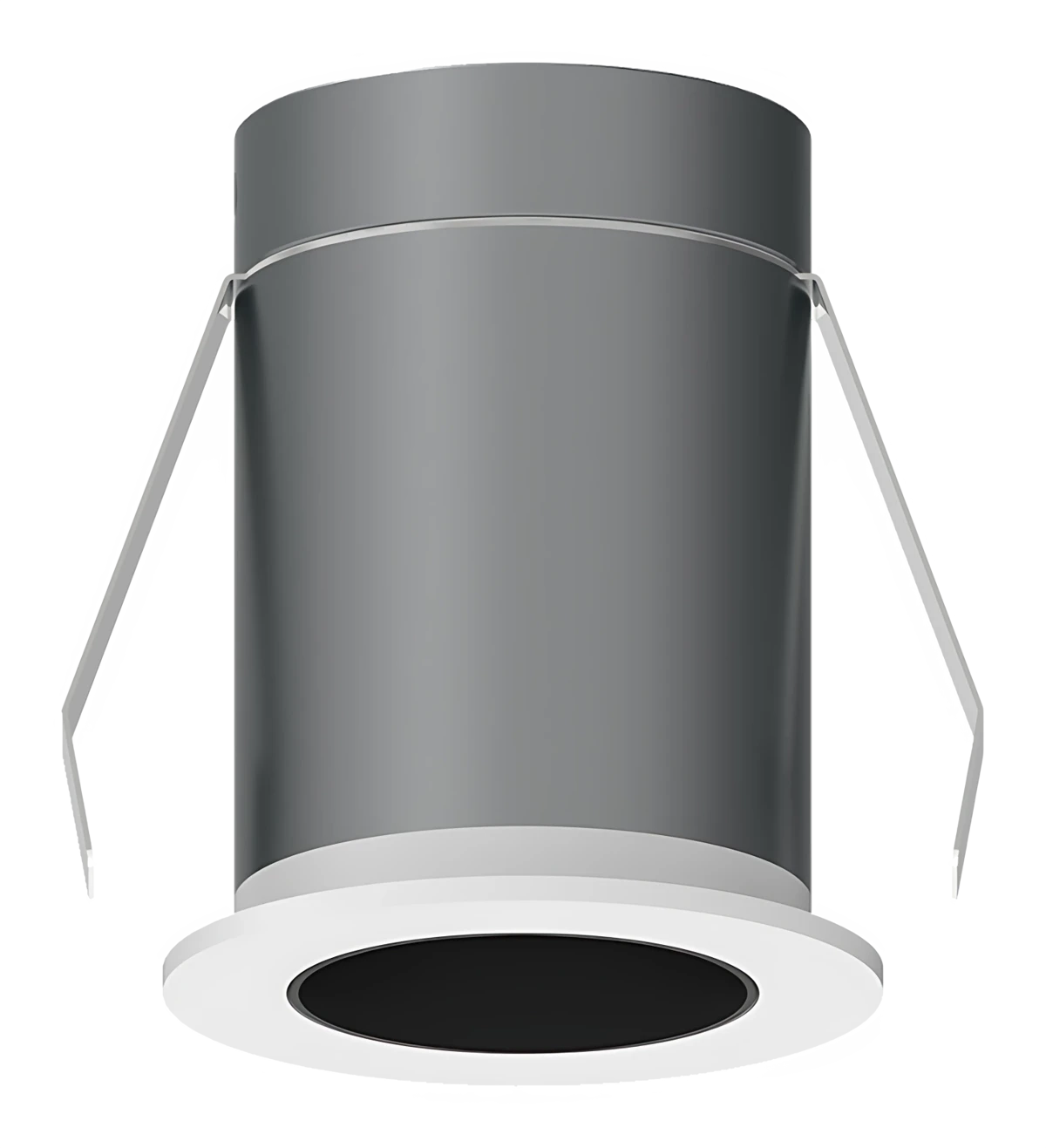

| D3-4218 | 5 W | 97 CRI | 300–400 lm | 45 × 56 mm | 15° 24° 36° 50° | 3000, 4000 K | Ø40 mm |
- LED source
- Citizen
- Colour temperature
- 3000, 4000 K
- Beam angles
- 15°, 24°, 36°, 50°
- Control
- Triac, Casambi, DALI, 0–10 V
- Mounting
- Recessed
- IP rating
- IP20
- Certifications
- CE, RoHS, EMC, LVD
Photometry
D3-4218. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: calculated from catalogue data, not measured.
- Power
- 5 W
- Luminous flux
- 210 lm
- Efficacy
- 42 lm/W
- Peak intensity
- 2,712 cd
- Field angle (10%)
- 27.3°
- At 3 m
- 301 lx, Ø0.79 m
- Power
- 5 W
- Luminous flux
- 278 lm
- Efficacy
- 56 lm/W
- Peak intensity
- 1,413 cd
- Field angle (10%)
- 43.7°
- At 3 m
- 157 lx, Ø1.28 m
- Power
- 5 W
- Luminous flux
- 208 lm
- Efficacy
- 42 lm/W
- Peak intensity
- 477 cd
- Field angle (10%)
- 65.6°
- At 3 m
- 53 lx, Ø1.95 m
- Power
- 5 W
- Luminous flux
- 300 lm
- Efficacy
- 60 lm/W
- Peak intensity
- 364 cd
- Field angle (10%)
- 91.1°
- At 3 m
- 40 lx, Ø2.80 m
