Technical specifications
| Code | Watt | CRI | Flux | Size | Beam | CCT | Cut-out |
|---|---|---|---|---|---|---|---|

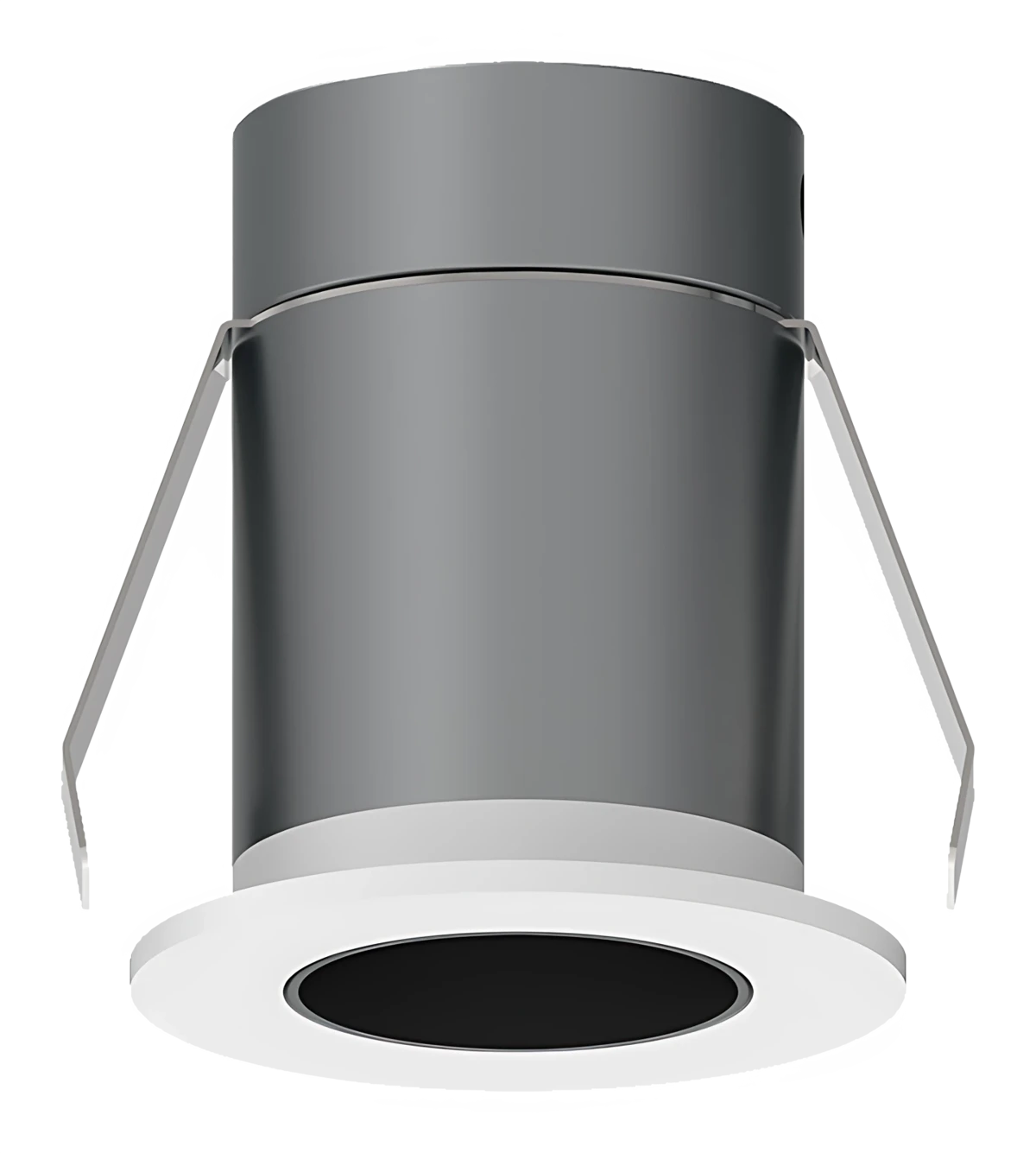

| D3-4216 | 3 W | 97 CRI | 150–200 lm | 38 × 43 mm | 12° 20° 30° | 3000, 4000 K | Ø30 mm |
- LED source
- Citizen
- Colour temperature
- 3000, 4000 K
- Beam angles
- 12°, 20°, 30°
- Control
- Triac, Casambi, DALI, 0–10 V
- Mounting
- Recessed
- IP rating
- IP20
- Certifications
- CE, RoHS, EMC, LVD
Photometry
D3-4216. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: calculated from catalogue data, not measured.
- Power
- 3 W
- Luminous flux
- 133 lm
- Efficacy
- 44 lm/W
- Peak intensity
- 2,688 cd
- Field angle (10%)
- 21.9°
- At 3 m
- 299 lx, Ø0.63 m
- Power
- 3 W
- Luminous flux
- 179 lm
- Efficacy
- 60 lm/W
- Peak intensity
- 1,304 cd
- Field angle (10%)
- 36.5°
- At 3 m
- 145 lx, Ø1.06 m
- Power
- 3 W
- Luminous flux
- 122 lm
- Efficacy
- 41 lm/W
- Peak intensity
- 400 cd
- Field angle (10%)
- 54.7°
- At 3 m
- 44 lx, Ø1.61 m
