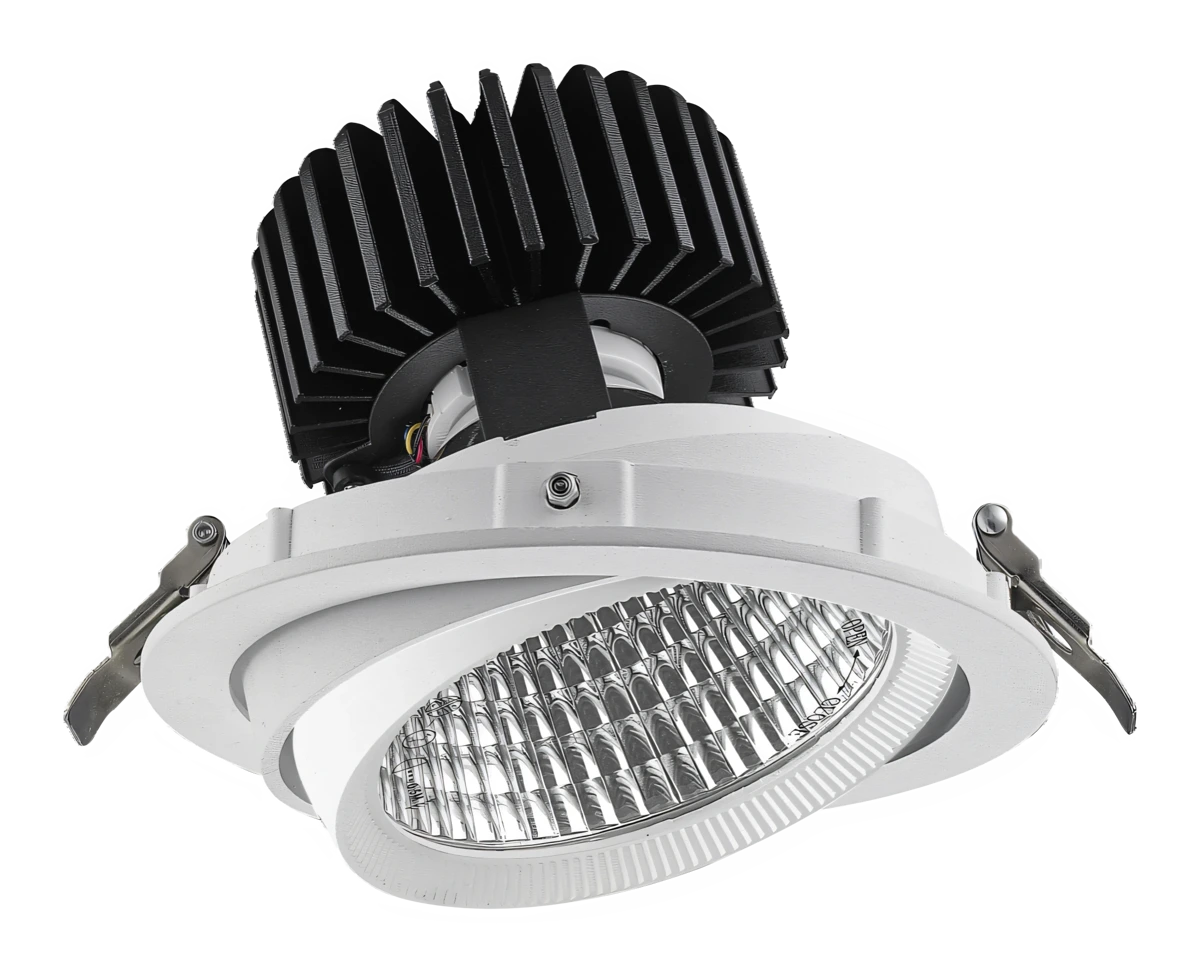

Technical specifications
| Code | Watt | CRI | Voltage | Flux | Size | Beam | CCT | Cut-out |
|---|---|---|---|---|---|---|---|---|
| D3-4013 | 35 W | 97 CRI | 220–240 V AC | 3000–3300 lm | Ø180 x H125 mm | 12° 30° 45° 60° | 3000, 4000 K | Ø170 mm |
| D3-4013 | 43 W | 97 CRI | 220–240 V AC | 3700–4000 lm | Ø180 x H125 mm | 12° 30° 45° 60° | 3000, 4000 K | Ø170 mm |
- LED source
- Citizen
- Colour temperature
- 3000, 4000 K
- Beam angles
- 12°, 30°, 45°, 60°
- Control
- On/Off, Triac, Casambi, DALI, 0–10 V
- Mounting
- Recessed
- IP rating
- IP20
- Certifications
- CE, RoHS, EMC, LVD
Photometry
D3-4013. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: calculated from catalogue data, not measured.
- Power
- 43 W
- Luminous flux
- 4,245 lm
- Efficacy
- 99 lm/W
- Peak intensity
- 13,892 cd
- Field angle (10%)
- 54.7°
- At 3 m
- 1,544 lx, Ø1.61 m
- Power
- 43 W
- Luminous flux
- 5,065 lm
- Efficacy
- 118 lm/W
- Peak intensity
- 7,520 cd
- Field angle (10%)
- 82°
- At 3 m
- 836 lx, Ø2.49 m
- Power
- 43 W
- Luminous flux
- 3,700 lm
- Efficacy
- 86 lm/W
- Peak intensity
- 74,639 cd
- Field angle (10%)
- 21.9°
- At 3 m
- 8,293 lx, Ø0.63 m
- Power
- 43 W
- Luminous flux
- 3,700 lm
- Efficacy
- 86 lm/W
- Peak intensity
- 3,183 cd
- Field angle (10%)
- 109.4°
- At 3 m
- 354 lx, Ø3.46 m
