Technical specifications
| Code | Watt | CRI | Voltage | Flux | Size | Beam | CCT | Cut-out |
|---|---|---|---|---|---|---|---|---|

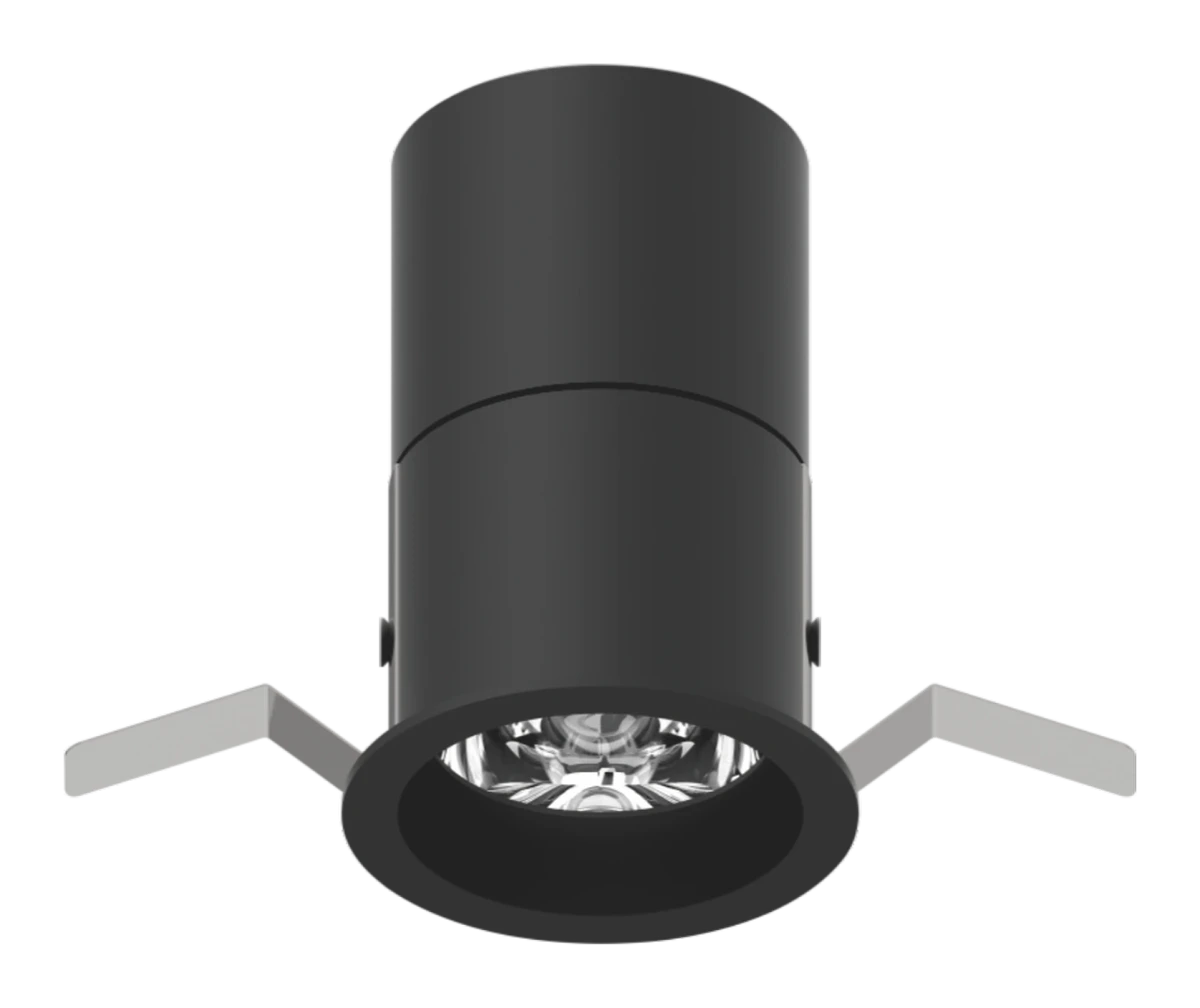

| D3-3019 | 10 W | 97 CRI | 220–240 V AC | 900–1000 lm | Ø60 × 88 mm | 18° 24° 38° | 3000, 4000 K | Ø55 mm |
- LED source
- Citizen
- Colour temperature
- 3000, 4000 K
- Beam angles
- 18°, 24°, 38°
- Control
- On/Off, Triac, Casambi, DALI, 0–10 V
- Mounting
- Recessed
- IP rating
- IP20
- Certifications
- CE, RoHS, EMC, LVD
Photometry
D3-3019. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: calculated from catalogue data, not measured.
- Power
- 10 W
- Luminous flux
- 704 lm
- Efficacy
- 70 lm/W
- Peak intensity
- 3,580 cd
- Field angle (10%)
- 43.7°
- At 3 m
- 398 lx, Ø1.28 m
- Power
- 10 W
- Luminous flux
- 1,012 lm
- Efficacy
- 101 lm/W
- Peak intensity
- 2,316 cd
- Field angle (10%)
- 65.6°
- At 3 m
- 257 lx, Ø1.95 m
- Power
- 10 W
- Luminous flux
- 900 lm
- Efficacy
- 90 lm/W
- Peak intensity
- 8,096 cd
- Field angle (10%)
- 32.8°
- At 3 m
- 900 lx, Ø0.95 m
- Power
- 10 W
- Luminous flux
- 900 lm
- Efficacy
- 90 lm/W
- Peak intensity
- 1,854 cd
- Field angle (10%)
- 69.3°
- At 3 m
- 206 lx, Ø2.07 m
