Technical specifications

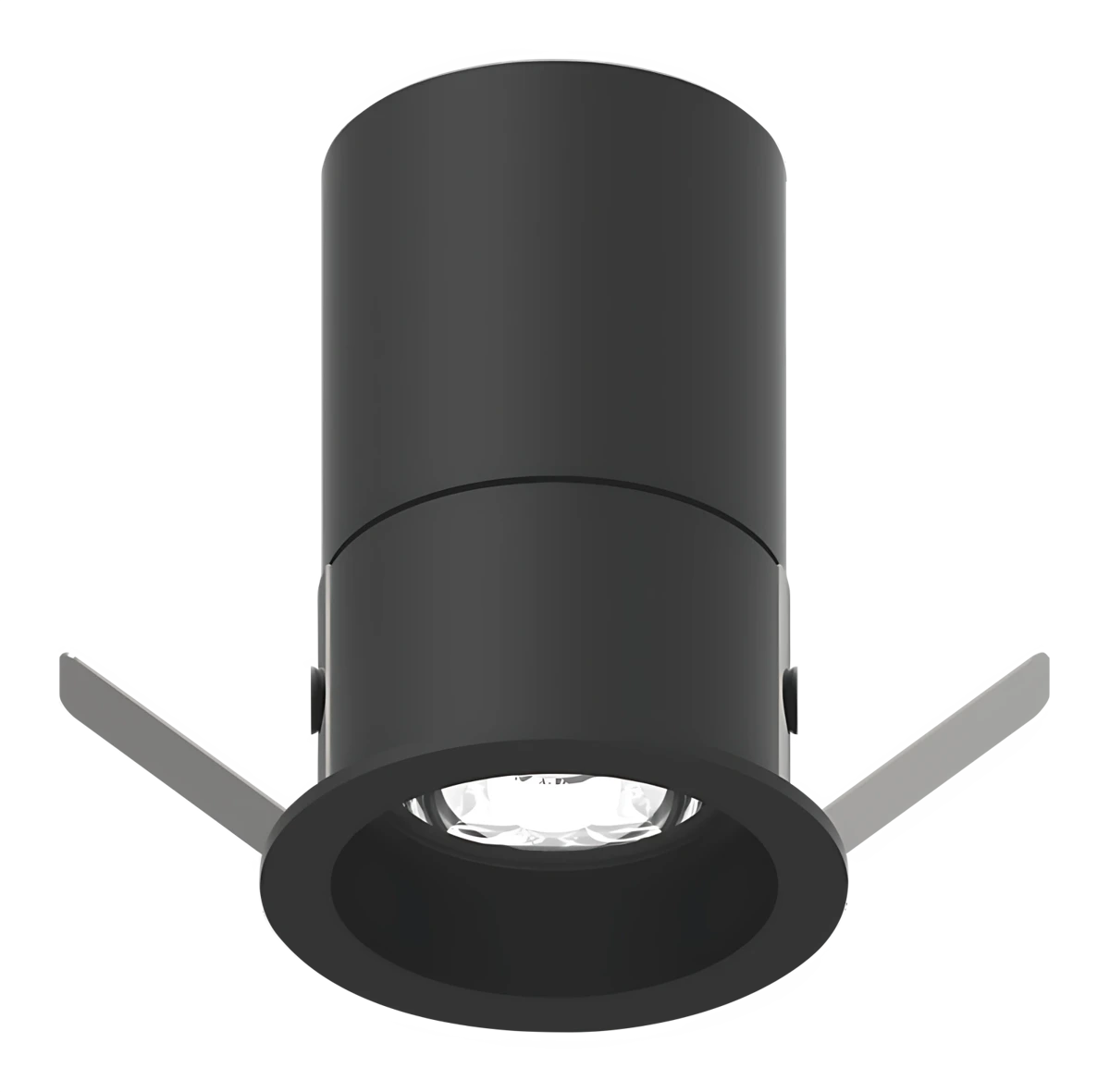

| Code | Watt | CRI | Voltage | Flux | Size | Beam | CCT | Cut-out |
|---|---|---|---|---|---|---|---|---|
| D3-3018 | 7 W | 97 CRI | 220–240 V AC | 600–700 lm | Ø50 × 70 mm | 15° 24° 36° 60° | 3000, 4000 K | Ø45 mm |
- LED source
- Citizen
- Colour temperature
- 3000, 4000 K
- Beam angles
- 15°, 24°, 36°, 60°
- Control
- On/Off, Triac, Casambi, DALI, 0–10 V
- Mounting
- Recessed
- IP rating
- IP20
- Certifications
- CE, RoHS, EMC, LVD
Photometry
D3-3018. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: calculated from catalogue data, not measured.
- Power
- 7 W
- Luminous flux
- 498 lm
- Efficacy
- 71 lm/W
- Peak intensity
- 2,532 cd
- Field angle (10%)
- 43.7°
- At 3 m
- 281 lx, Ø1.28 m
- Power
- 7 W
- Luminous flux
- 613 lm
- Efficacy
- 88 lm/W
- Peak intensity
- 1,404 cd
- Field angle (10%)
- 65.6°
- At 3 m
- 156 lx, Ø1.95 m
- Power
- 7 W
- Luminous flux
- 600 lm
- Efficacy
- 86 lm/W
- Peak intensity
- 7,758 cd
- Field angle (10%)
- 27.3°
- At 3 m
- 862 lx, Ø0.79 m
- Power
- 7 W
- Luminous flux
- 600 lm
- Efficacy
- 86 lm/W
- Peak intensity
- 516 cd
- Field angle (10%)
- 109.4°
- At 3 m
- 57 lx, Ø3.46 m
