Technical specifications
| Code | Watt | CRI | Flux | Size | Beam | CCT | Cut-out |
|---|---|---|---|---|---|---|---|

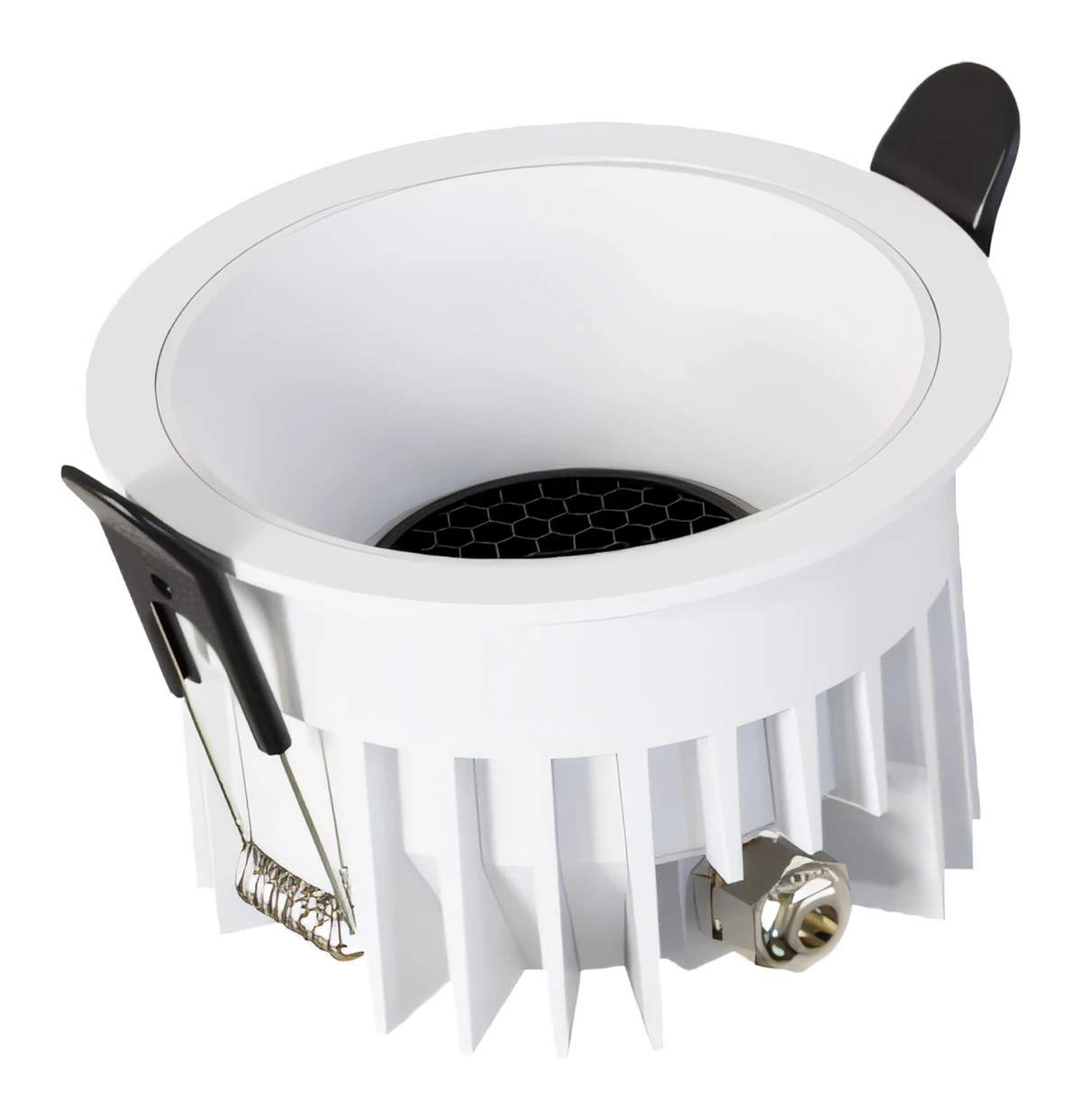

| D3-1012R | 15 W | 97 CRI | 1400–1500 lm | Ø86 × 54 mm | 15° 24° 38° 55° | 3000, 4000 K | Ø75 mm |
- LED source
- Citizen
- Colour temperature
- 3000, 4000 K
- Beam angles
- 15°, 24°, 38°, 55°
- Control
- Triac, Casambi, DALI, 0–10 V
- Mounting
- Recessed
- IP rating
- IP65
- Certifications
- CE, RoHS, EMC, LVD
Photometry
D3-1012R. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: calculated from catalogue data, not measured.
- Power
- 15 W
- Luminous flux
- 887 lm
- Efficacy
- 59 lm/W
- Peak intensity
- 4,509 cd
- Field angle (10%)
- 43.7°
- At 3 m
- 501 lx, Ø1.28 m
- Power
- 15 W
- Luminous flux
- 1,400 lm
- Efficacy
- 93 lm/W
- Peak intensity
- 18,102 cd
- Field angle (10%)
- 27.3°
- At 3 m
- 2,011 lx, Ø0.79 m
- Power
- 15 W
- Luminous flux
- 1,400 lm
- Efficacy
- 93 lm/W
- Peak intensity
- 2,884 cd
- Field angle (10%)
- 69.3°
- At 3 m
- 320 lx, Ø2.07 m
- Power
- 15 W
- Luminous flux
- 1,400 lm
- Efficacy
- 93 lm/W
- Peak intensity
- 1,417 cd
- Field angle (10%)
- 100.2°
- At 3 m
- 157 lx, Ø3.12 m
