Technical specifications
| Code | Watt | CRI | Voltage | Flux | Size | Beam | CCT |
|---|---|---|---|---|---|---|---|

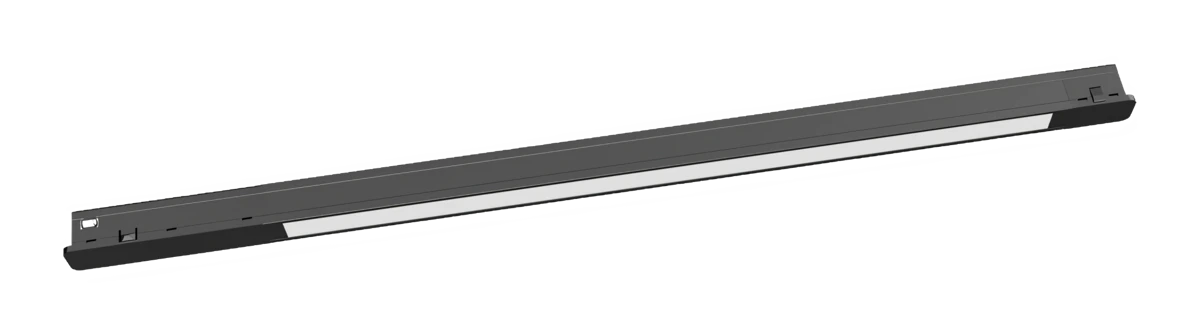

| CX-9250 | 12 W | 97 CRI | 48 V | 700 lm | 416, H18 mm | 100° | 2700, 3000, 4000 K |
| CX-9251 | 20 W | 97 CRI | 48 V | 1100 lm | 714, H18 mm | 100° | 2700, 3000, 4000 K |
- LED source
- Citizen
- Colour temperature
- 2700, 3000, 4000 K
- Beam angles
- 100°
- Control
- Casambi, DALI, 0–10 V, Bluetooth
- Mounting
- Magnetic track
- IP rating
- IP20
- Certifications
- RoHS, CE
Photometry
CX-9251. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: calculated from catalogue data, not measured.
- Power
- 20 W
- Luminous flux
- 1,100 lm
- Efficacy
- 55 lm/W
- Peak intensity
- 408 cd
- At 3 m
- 45 lx, Ø7.15 m
