CX-9234

Name: CX-9234
Brand: DiaNoche
SKU: CX-9234

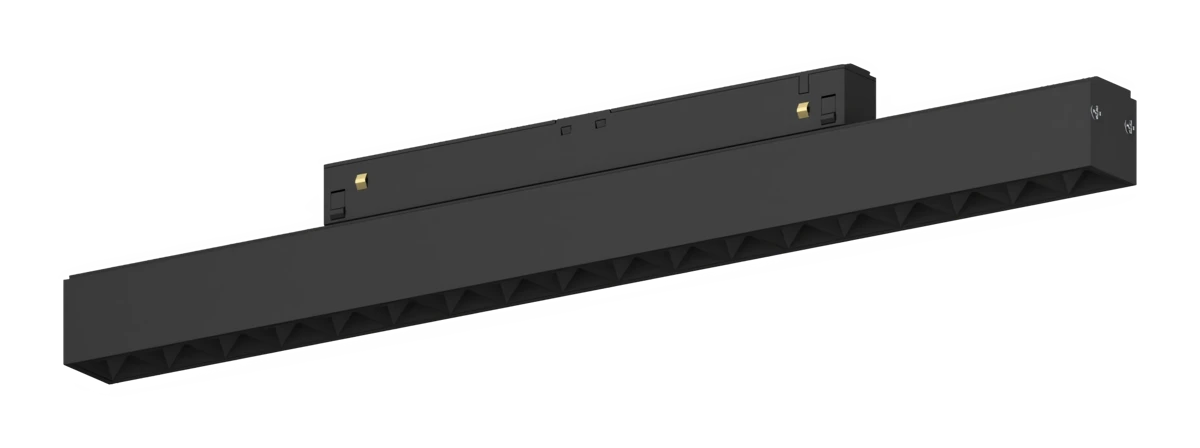

23 mm linear luminaire

Linear luminaire for the 23 mm magnetic track. 6, 10, 15, 20 or 28 W. Beam angles 15° to 45°, by model. 2700, 3000, 4000 K. 97 CRI.

Finish: Black

7 models

CX-92346 W
CX-922810 W
CX-922815 W
CX-923215 W
CX-923220 W
CX-922920 W
CX-922928 W

Enquire about this product

DatasheetPDF, 432 KB

Photometric filesIES and LDT, 21 versions, calculated

CX-92346 W, 15°IES LDT

CX-92346 W, 35°IES LDT

CX-92346 W, 45°IES LDT

CX-922810 W, 15°IES LDT

CX-922810 W, 30°IES LDT

CX-922810 W, 45°IES LDT

CX-922815 W, 15°IES LDT

CX-922815 W, 30°IES LDT

CX-922815 W, 45°IES LDT

CX-923215 W, 15°IES LDT

CX-923215 W, 30°IES LDT

CX-923215 W, 45°IES LDT

CX-923220 W, 15°IES LDT

CX-923220 W, 30°IES LDT

CX-923220 W, 45°IES LDT

CX-922920 W, 15°IES LDT

CX-922920 W, 30°IES LDT

CX-922920 W, 45°IES LDT

CX-922928 W, 15°IES LDT

CX-922928 W, 30°IES LDT

CX-922928 W, 45°IES LDT

Calculated files are built from the catalogue photometric data, its illuminance table or rated luminous flux, with the beam angle. Spill light is not modelled.

Technical specifications

Code	Watt	CRI	Voltage	Flux	Size	Beam	CCT
CX-9234	6 W	97 CRI	48 V	540 lm	110 × 22, H25 mm	15° 35° 45°	2700, 3000, 4000 K
CX-9228	10 W	97 CRI	48 V	900 lm	218 × 22, H25 mm	15° 30° 45°	2700, 3000, 4000 K
CX-9228	15 W	97 CRI	48 V	1350 lm	218 × 22, H25 mm	15° 30° 45°	2700, 3000, 4000 K
CX-9232	15 W	97 CRI	48 V	1350 lm	325 × 22, H25 mm	15° 30° 45°	2700, 3000, 4000 K
CX-9232	20 W	97 CRI	48 V	1800 lm	325 × 22, H25 mm	15° 30° 45°	2700, 3000, 4000 K
CX-9229	20 W	97 CRI	48 V	1800 lm	433 × 22, H25 mm	15° 30° 45°	2700, 3000, 4000 K
CX-9229	28 W	97 CRI	48 V	2500 lm	433 × 22, H25 mm	15° 30° 45°	2700, 3000, 4000 K

LED source: Citizen
Colour temperature: 2700, 3000, 4000 K
Beam angles: 15°, 30°, 35°, 45°
Control: Casambi, DALI, 0–10 V, Bluetooth
Mounting: Magnetic track
IP rating: IP20
Certifications: RoHS, CE

Photometry

CX-9229. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: calculated from catalogue data, not measured.
