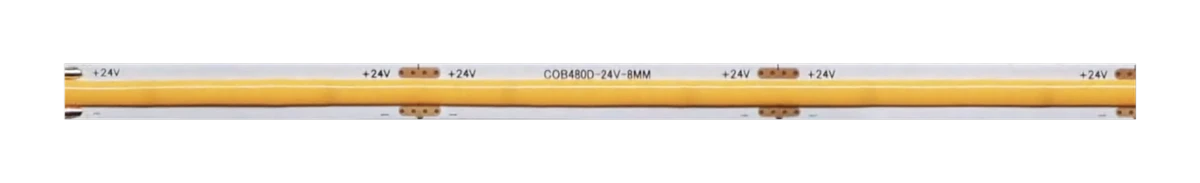

COB

Name: COB
Brand: DiaNoche
SKU: OL-KNNF24320T00-8A39

Linear luminaire

Linear luminaire. 10 W. 143.4° or 146.3° beam. 2700, 3000, 4000, 6500 K. 97 CRI.

Available finishes

Black

8 models

OL-KNNF24320T00-8A3910 W, 320 LED/m, IP20
OL-INNF24320T00-8A3910 W, 320 LED/m, IP20
OL-DNNF24320T00-8A3910 W, 320 LED/m, IP20
OL-WNNF24320T00-8A3910 W, 320 LED/m, IP20
OL-KNNF24480T00-8A3910 W, 480 LED/m, IP20
OL-INNF24480T00-8A3910 W, 480 LED/m, IP20
OL-DNNF24480T00-8A3910 W, 480 LED/m, IP20
OL-WNNF24480T00-8A3910 W, 480 LED/m, IP20

Enquire about this product

DatasheetPDF, 270 KB

Photometric filesIES and LDT, 16 versions, calculated

OL-KNNF24320T00-8A3910 W, 143.4°IES LDT

OL-KNNF24320T00-8A3910 W, 146.3°IES LDT

OL-INNF24320T00-8A3910 W, 143.4°IES LDT

OL-INNF24320T00-8A3910 W, 146.3°IES LDT

OL-DNNF24320T00-8A3910 W, 143.4°IES LDT

OL-DNNF24320T00-8A3910 W, 146.3°IES LDT

OL-WNNF24320T00-8A3910 W, 143.4°IES LDT

OL-WNNF24320T00-8A3910 W, 146.3°IES LDT

OL-KNNF24480T00-8A3910 W, 143.4°IES LDT

OL-KNNF24480T00-8A3910 W, 146.3°IES LDT

OL-INNF24480T00-8A3910 W, 143.4°IES LDT

OL-INNF24480T00-8A3910 W, 146.3°IES LDT

OL-DNNF24480T00-8A3910 W, 143.4°IES LDT

OL-DNNF24480T00-8A3910 W, 146.3°IES LDT

OL-WNNF24480T00-8A3910 W, 143.4°IES LDT

OL-WNNF24480T00-8A3910 W, 146.3°IES LDT

Calculated files are built from the catalogue photometric data, its illuminance table or rated luminous flux, with the beam angle. Spill light is not modelled.

Technical specifications

Code	Watt	CRI	Voltage	Flux	Size	Beam	CCT
OL-KNNF24320T00-8A3910 W, 320 LED/m, IP20	10 W	97 CRI	24 V	770 lm/m	W8 x T2.3 mm (PCB width 8 mm, thickness 2.3 mm)	143.4°	2700, 3000, 4000, 6500 K
OL-INNF24320T00-8A3910 W, 320 LED/m, IP20	10 W	97 CRI	24 V	800 lm/m	W8 x T2.3 mm (PCB width 8 mm, thickness 2.3 mm)	143.4°	2700, 3000, 4000, 6500 K
OL-DNNF24320T00-8A3910 W, 320 LED/m, IP20	10 W	97 CRI	24 V	900 lm/m	W8 x T2.3 mm (PCB width 8 mm, thickness 2.3 mm)	143.4°	2700, 3000, 4000, 6500 K
OL-WNNF24320T00-8A3910 W, 320 LED/m, IP20	10 W	97 CRI	24 V	900 lm/m	W8 x T2.3 mm (PCB width 8 mm, thickness 2.3 mm)	143.4°	2700, 3000, 4000, 6500 K
OL-KNNF24480T00-8A3910 W, 480 LED/m, IP20	10 W	97 CRI	24 V	770 lm/m	W8 x T2.3 mm (PCB width 8 mm, thickness 2.3 mm)	146.3°	2700, 3000, 4000, 6500 K
OL-INNF24480T00-8A3910 W, 480 LED/m, IP20	10 W	97 CRI	24 V	800 lm/m	W8 x T2.3 mm (PCB width 8 mm, thickness 2.3 mm)	146.3°	2700, 3000, 4000, 6500 K
OL-DNNF24480T00-8A3910 W, 480 LED/m, IP20	10 W	97 CRI	24 V	900 lm/m	W8 x T2.3 mm (PCB width 8 mm, thickness 2.3 mm)	146.3°	2700, 3000, 4000, 6500 K
OL-WNNF24480T00-8A3910 W, 480 LED/m, IP20	10 W	97 CRI	24 V	900 lm/m	W8 x T2.3 mm (PCB width 8 mm, thickness 2.3 mm)	146.3°	2700, 3000, 4000, 6500 K

LED source: Citizen
Colour temperature: 2700, 3000, 4000, 6500 K
Beam angles: 143.4°, 146.3°
Mounting: Recessed, Surface
IP rating: IP20
Certifications: CE, RoHS, UL, ErP
Note: Power per metre

Photometry

OL-KNNF24320T00-8A39. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: calculated from catalogue data, not measured.
