Technical specifications
| Code | Watt | CRI | Voltage | Flux | Size | Beam | CCT | Cut-out | Notes |
|---|---|---|---|---|---|---|---|---|---|

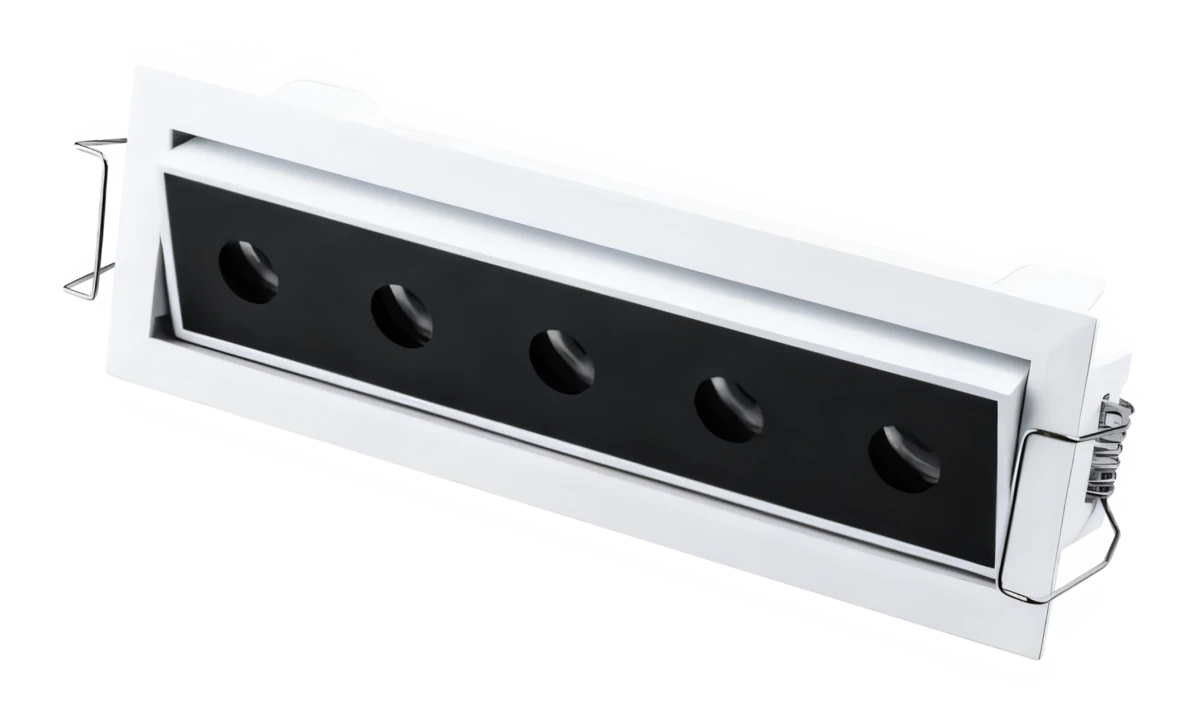

| DL1932 | 21 W | 97 CRI | max 30 V | 1680 lm | L219 x W68 x H50 mm | 24° 36° | 2700, 3000, 4000 K | Ø210 mm | 700 mA |
- LED source
- Citizen
- Colour temperature
- 2700, 3000, 4000 K
- Beam angles
- 24°, 36°
- Mounting
- Recessed
- IP rating
- IP20
- Certifications
- CE
Photometry
DL1932. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: calculated from catalogue data, not measured.
- Power
- 21 W
- Luminous flux
- 1,680 lm
- Efficacy
- 80 lm/W
- Peak intensity
- 8,540 cd
- Field angle (10%)
- 43.7°
- At 3 m
- 949 lx, Ø1.28 m
- Power
- 21 W
- Luminous flux
- 1,680 lm
- Efficacy
- 80 lm/W
- Peak intensity
- 3,846 cd
- Field angle (10%)
- 65.6°
- At 3 m
- 427 lx, Ø1.95 m
