Technical specifications
| Code | Watt | CRI | Voltage | Flux | Size | Beam | CCT | Cut-out | Notes |
|---|---|---|---|---|---|---|---|---|---|

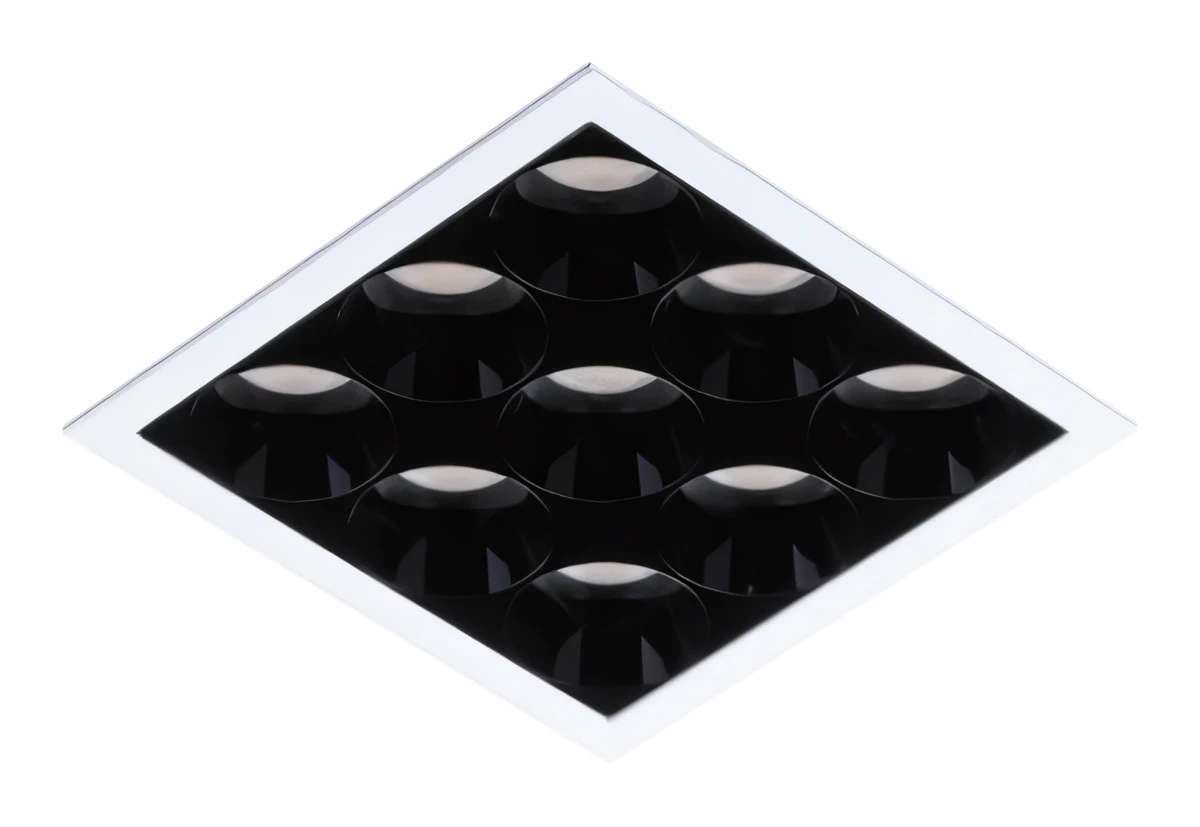

| DL1719 | 9 W | 97 CRI | max 27 V | 720 lm | 126 × 71 × 45 mm overall (module 60 × 60) | 24° 36° | 2700, 3000, 4000 K | Ø71 mm | 350 mA |
- LED source
- Citizen
- Colour temperature
- 2700, 3000, 4000 K
- Beam angles
- 24°, 36°
- Mounting
- Recessed
- IP rating
- IP20
- Certifications
- CE
Photometry
DL1719. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: calculated from catalogue data, not measured.
- Power
- 9 W
- Luminous flux
- 720 lm
- Efficacy
- 80 lm/W
- Peak intensity
- 3,660 cd
- Field angle (10%)
- 43.7°
- At 3 m
- 407 lx, Ø1.28 m
- Power
- 9 W
- Luminous flux
- 720 lm
- Efficacy
- 80 lm/W
- Peak intensity
- 1,648 cd
- Field angle (10%)
- 65.6°
- At 3 m
- 183 lx, Ø1.95 m
