Technical specifications
| Code | Watt | CRI | Voltage | Flux | Size | Beam | CCT | Cut-out | Notes |
|---|---|---|---|---|---|---|---|---|---|

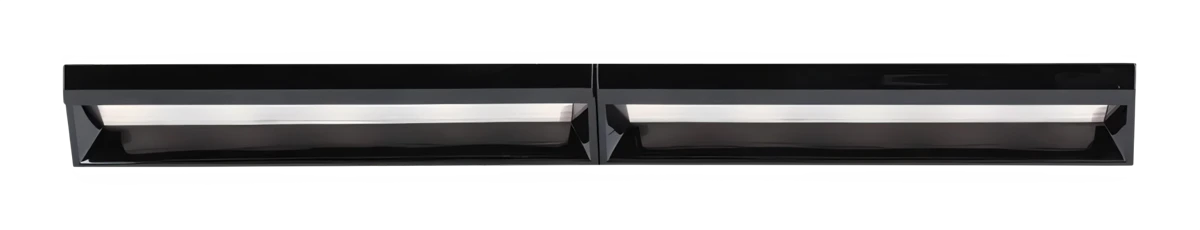

| DL1651Wall washer | 20 W | 97 CRI | max 32 V | 1800 lm | L331 x W41 x H60 mm | 90° | 2700, 3000, 4000 K | Ø276 mm | 600 mA |
- LED source
- Citizen
- Colour temperature
- 2700, 3000, 4000 K
- Beam angles
- 90°
- Mounting
- Recessed
- IP rating
- IP20
- Certifications
- CE
Photometry
DL1651. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: calculated from catalogue data, not measured.
- Power
- 20 W
- Luminous flux
- 1,800 lm
- Efficacy
- 90 lm/W
- Peak intensity
- 763 cd
