Technical specifications
| Code | Watt | CRI | Voltage | Flux | Size | Beam | CCT | Cut-out | Notes |
|---|---|---|---|---|---|---|---|---|---|

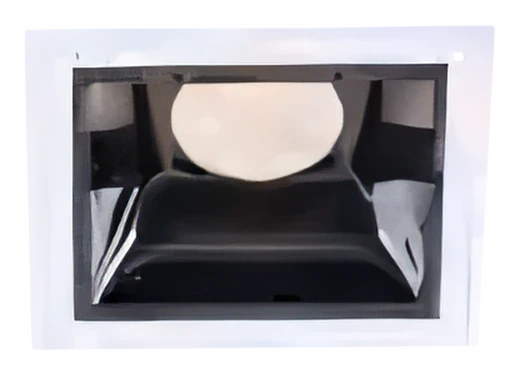

| DL0509 | 7 W | 97 CRI | max 19 V | 630 lm | 62 × 62 x H68 mm | 15° 30° 45° | 2700, 3000, 4000 K | Ø58 mm | 350 mA |
- LED source
- Citizen
- Colour temperature
- 2700, 3000, 4000 K
- Beam angles
- 15°, 30°, 45°
- Mounting
- Recessed
- IP rating
- IP20
- Certifications
- CE
Photometry
DL0509. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: calculated from catalogue data, not measured.
- Power
- 7 W
- Luminous flux
- 630 lm
- Efficacy
- 90 lm/W
- Peak intensity
- 8,146 cd
- Field angle (10%)
- 27.3°
- At 3 m
- 905 lx, Ø0.79 m
- Power
- 7 W
- Luminous flux
- 630 lm
- Efficacy
- 90 lm/W
- Peak intensity
- 2,062 cd
- Field angle (10%)
- 54.7°
- At 3 m
- 229 lx, Ø1.61 m
- Power
- 7 W
- Luminous flux
- 630 lm
- Efficacy
- 90 lm/W
- Peak intensity
- 935 cd
- Field angle (10%)
- 82°
- At 3 m
- 104 lx, Ø2.49 m
