Technical specifications
| Code | Watt | CRI | Voltage | Flux | Size | Beam | CCT | Notes |
|---|---|---|---|---|---|---|---|---|

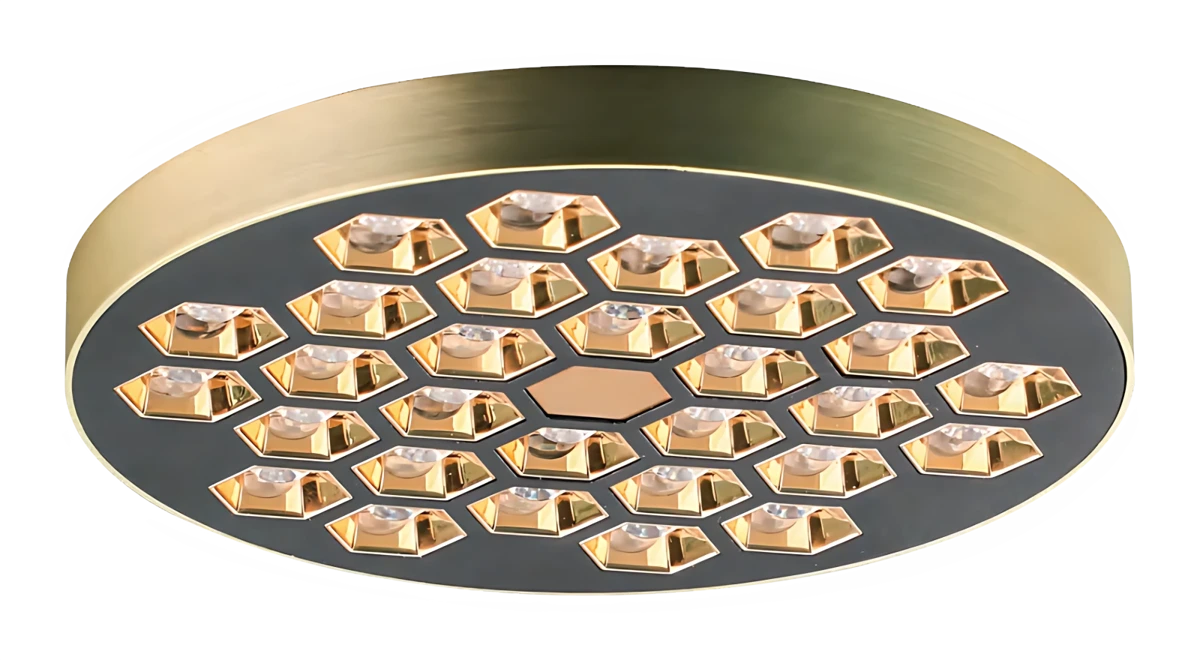

| CH0296 | 10 W | 97 CRI | max 30 V | 960 lm | Ø123 × 13 mm | 60° | 2700, 3000, 4000 K | 350 mA |
- LED source
- Citizen
- Colour temperature
- 2700, 3000, 4000 K
- Beam angles
- 60°
- Mounting
- Surface
- IP rating
- IP20
- Certifications
- CE
Photometry
CH0296. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: calculated from catalogue data, not measured.
- Power
- 10 W
- Luminous flux
- 960 lm
- Efficacy
- 96 lm/W
- Peak intensity
- 826 cd
- Field angle (10%)
- 109.4°
- At 3 m
- 92 lx, Ø3.46 m
