Technical specifications

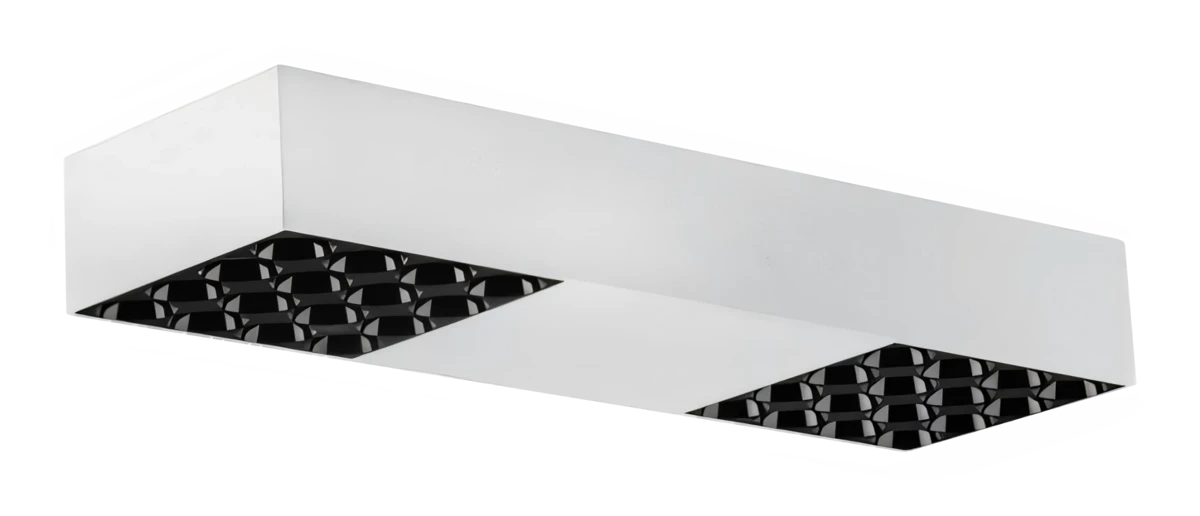

| Code | Watt | CRI | Voltage | Flux | Size | Beam | CCT |
|---|---|---|---|---|---|---|---|
| CH0216 | 26 W | 97 CRI | 230 V AC | 1280 lm | 264 × 80 × 36 mm | 24° 38° | 2700, 3000, 4000 K |
- LED source
- Citizen
- Colour temperature
- 2700, 3000, 4000 K
- Beam angles
- 24°, 38°
- Mounting
- Surface
- IP rating
- IP20
- Certifications
- CE
Photometry
CH0216. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: calculated from catalogue data, not measured.
- Power
- 26 W
- Luminous flux
- 1,280 lm
- Efficacy
- 49 lm/W
- Peak intensity
- 6,506 cd
- Field angle (10%)
- 43.7°
- At 3 m
- 723 lx, Ø1.28 m
- Power
- 26 W
- Luminous flux
- 1,280 lm
- Efficacy
- 49 lm/W
- Peak intensity
- 2,637 cd
- Field angle (10%)
- 69.3°
- At 3 m
- 293 lx, Ø2.07 m
