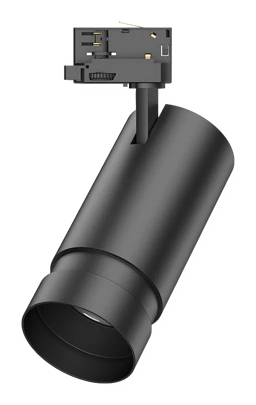

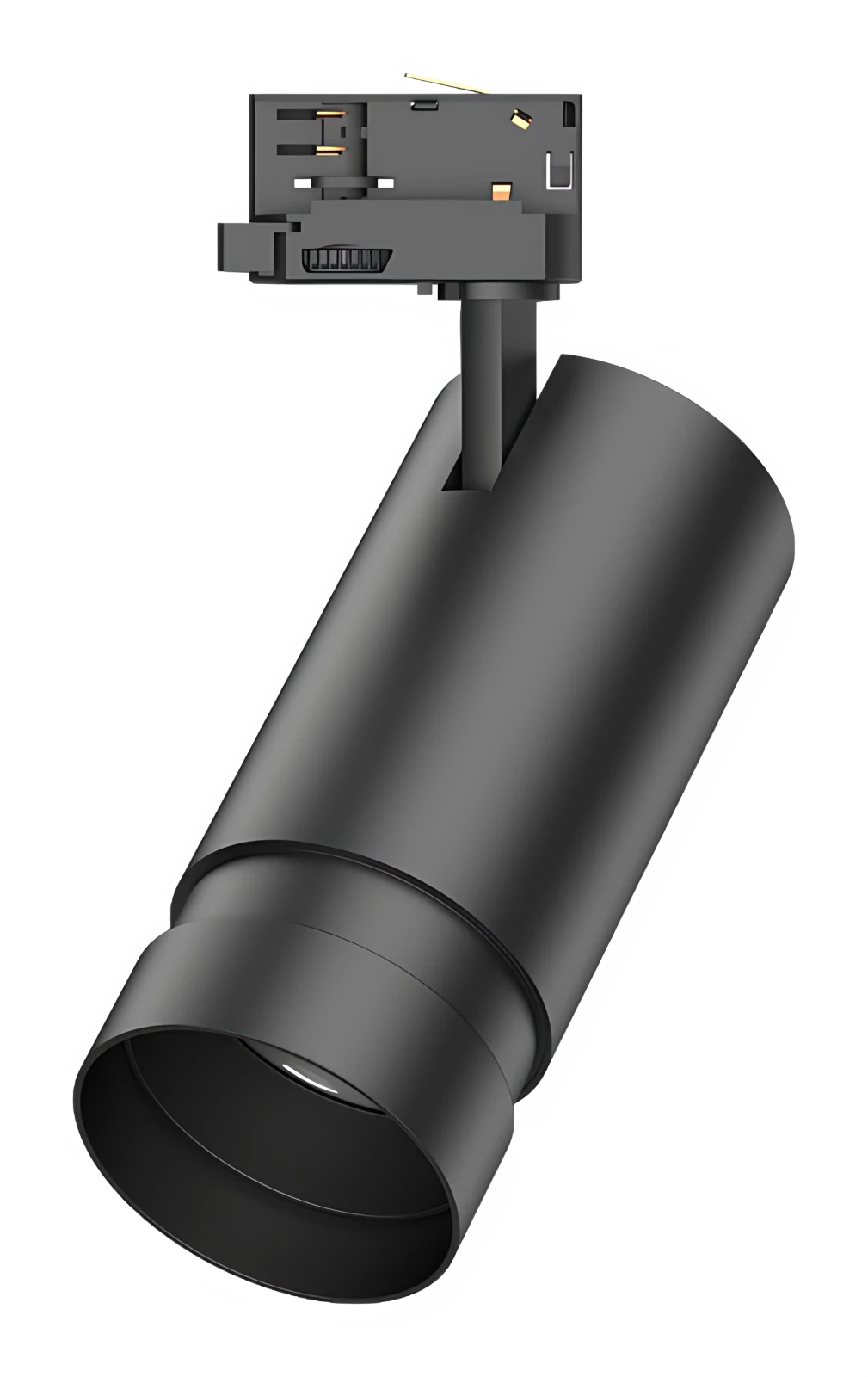

Anti-glare S3-6181

Technical specifications

CodeWattCRIFluxSizeBeamCCT

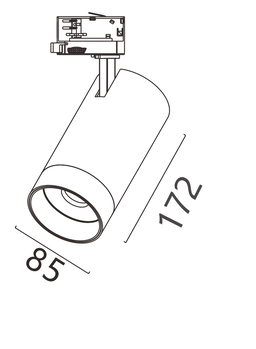

S3-6181Track24 W97 CRI1800–1900 lm85 × 172 mm15° 24° 38° 60°3000, 4000 K
LED source
Citizen
Colour temperature
3000, 4000 K
Beam angles
15°, 24°, 38°, 60°
Control
Triac, DALI-2, 0–10 V
Mounting
Magnetic track, Recessed, Surface
IP rating
IP20
Certifications
CE, RoHS, EMC, LVD

Photometry

S3-6181. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: calculated from catalogue data, not measured.

0°30°60°30°60° 646512930 cd/klm C0–C180 C90–C270
15°
Power
24 W
Luminous flux
917 lm
Efficacy
38 lm/W
Peak intensity
11,860 cd
Field angle (10%)
27.3°
At 3 m
1,318 lx, Ø0.79 m
0°30°60°30°60° 430860 cd/klm C0–C180 C90–C270
60°
Power
24 W
Luminous flux
4,324 lm
Efficacy
180 lm/W
Peak intensity
3,720 cd
Field angle (10%)
109.4°
At 3 m
413 lx, Ø3.46 m
0°30°60°30°60° 25425083 cd/klm C0–C180 C90–C270
24°
Power
24 W
Luminous flux
1,800 lm
Efficacy
75 lm/W
Peak intensity
9,150 cd
Field angle (10%)
43.7°
At 3 m
1,017 lx, Ø1.28 m
0°30°60°30°60° 10302060 cd/klm C0–C180 C90–C270
38°
Power
24 W
Luminous flux
1,800 lm
Efficacy
75 lm/W
Peak intensity
3,708 cd
Field angle (10%)
69.3°
At 3 m
412 lx, Ø2.07 m
