Technical specifications
| Code | Watt | CRI | Flux | Size | Beam | CCT |
|---|---|---|---|---|---|---|

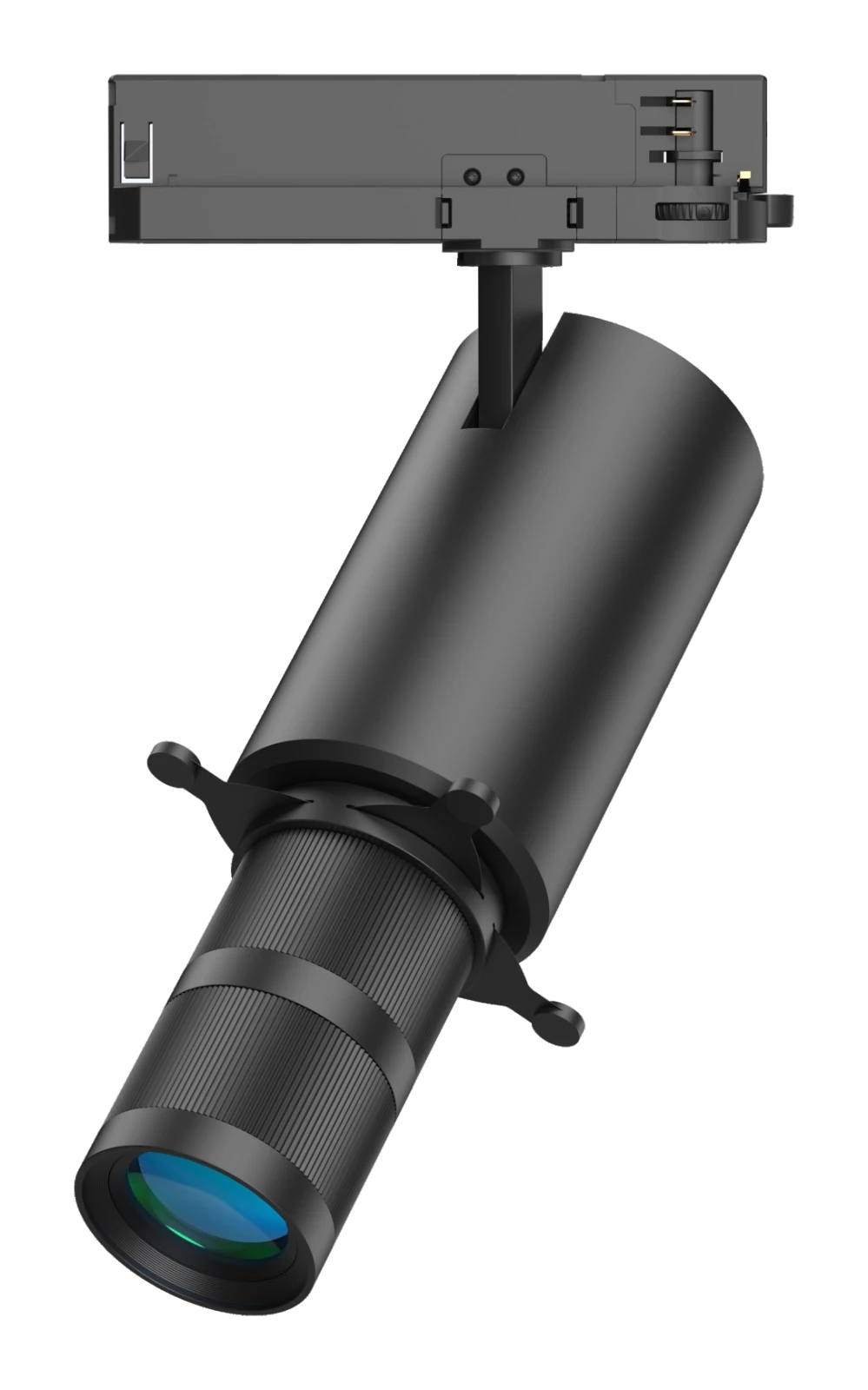

| C3-6184Surface mount | 24 W | 97 CRI | 800–900 lm | 85 × 235 mm | 25° 40° | 3000, 4000 K |
- LED source
- Citizen
- Colour temperature
- 3000, 4000 K
- Beam angles
- 25°, 40°
- Control
- Triac, DALI-2, 0–10 V
- Mounting
- Magnetic track, Recessed, Surface
- IP rating
- IP20
- Certifications
- CE, RoHS, EMC, LVD
Photometry
C3-6184. Polar curve (C0–C180 solid, C90–C270 dashed, cd/klm) and key figures from the same data as the IES and LDT files: calculated from catalogue data, not measured.
- Power
- 24 W
- Luminous flux
- 800 lm
- Efficacy
- 33 lm/W
- Peak intensity
- 3,751 cd
- Field angle (10%)
- 45.6°
- At 3 m
- 417 lx, Ø1.33 m
- Power
- 24 W
- Luminous flux
- 800 lm
- Efficacy
- 33 lm/W
- Peak intensity
- 1,492 cd
- Field angle (10%)
- 72.9°
- At 3 m
- 166 lx, Ø2.18 m
